UP10-XA pump for weed killers 18 l/min – s.s. AISI 316

Self-priming electric pumps for transferring of liquids up to 7 bar pressure. Pump body and connections in stainless steel. Main application: High pressure spraying of aggressive liquids.

View installation 16440312 – UP10-XA 12V sheet here.

View installation 16440313 – UP10-XA 24V sheet here.

View installation 16440612 – UP10-XA 12V sheet here.

View installation 16440613 – UP10-XA 24V sheet here.



SKU: 16440312 Categories: , ,
Technical details

Technical details

Part n. Product Name Retail price (€ ea.) Tensione (V) Assorbimento (A) Fusibile (A) Portata (l/min) Adescamento (m) Pressione (bar) O-Ring Tenuta Hz Bocche (BSPP) Tubo (mm) Protezione IP Potenza Motore (W) Peso (kg)
16440312 UP10-XA Login 12 11 25 18 3 5 FKM FKM DC 3/8″ 13 67 360 3,8
16440313 UP10-XA Login 24 5 20 18 3 5 FKM FKM DC 3/8″ 13 67 360 3,8
16440612 UP10-XA Login 12 11 25 18 3 5 EPDM EPDM DC 3/8″ 13 67 360 3,8
16440613 UP10-XA Login 24 5 20 18 3 5 EPDM EPDM DC 3/8″ 13 67 360 3,8

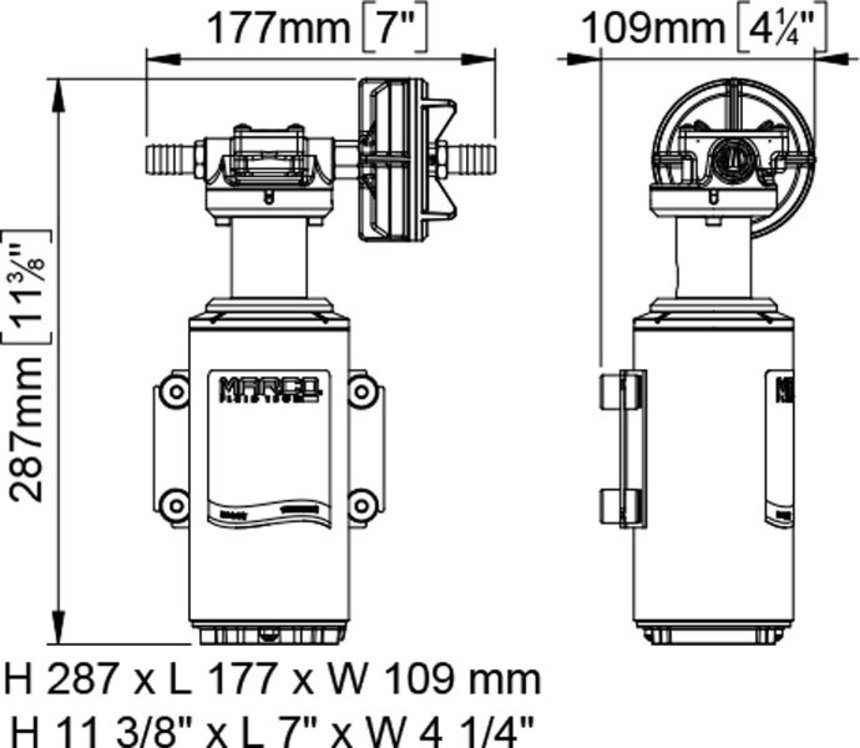

Drawing

Drawing
