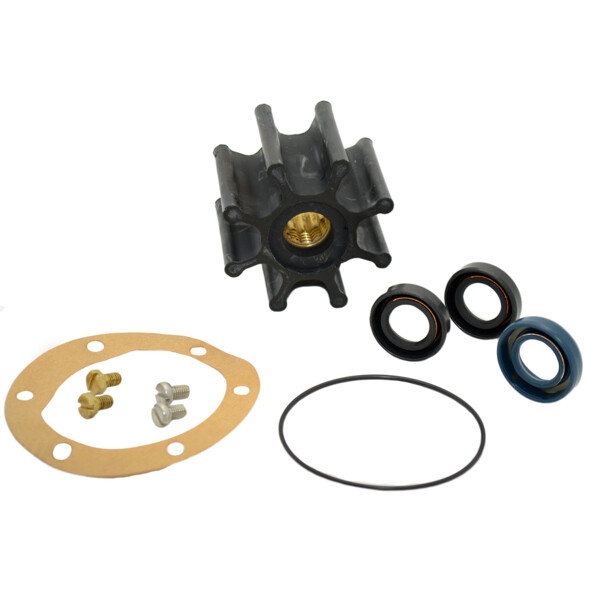

Original Impeller Kits

Marine – Recreational / Original Impeller Kits

A worn or damaged impeller can cause system failure or engine breakdown. SPX FLOW’s Johnson Pump marine brand impellers are developed and manufactured for maximum flow and long life. With a genuine spare impeller you can also be sure that you are getting the quality required by engine manufacturers and professionals.

Categories: , ,
Johnson Pump
Features

Features

SPX FLOW engineers Johnson Pump impellers for outstanding performance!SPX FLOW supplies engine cooling pumps to the world’s leading marine motor manufacturers, not just because of our renowned pumps; but also because of the heart of an engine cooling pump: the impeller!With SPX FLOW Johnson Pump Marine Original Impellers you get:

  • Ensures correct cooling flow
  • Stable pressure delivery over time
  • Significantly longer service life
  • Excellent self-priming capability
  • Ensures sufficient cooling directly at start up
  • Our impellers are manufactured to strict tolerances for optimal functionality unique MC97 rubber compound in many of our impellers
  • Correct impeller dimensions
  • Optimized to provide maximum life, especially for applications where the end user doesn’t run the engine on a regular basis:
    • Stable pressure delivery over time
    • Minimized failures due to fatigue
    • Minimized swelling



DEVELOPMENTAL KNOW-HOW

With its Johnson Pump brand SPX FLOW is an original manufacturer of worldclass impellers for more than 50 years

  • More than 125 years of accumulated engineering time.
  • Documented, standardized testing
  • Continuous quality testing, annually 150,000 test hours
  • In excess of 150,000 hours testing of our MC97 rubber compound
Specifications

Specifications

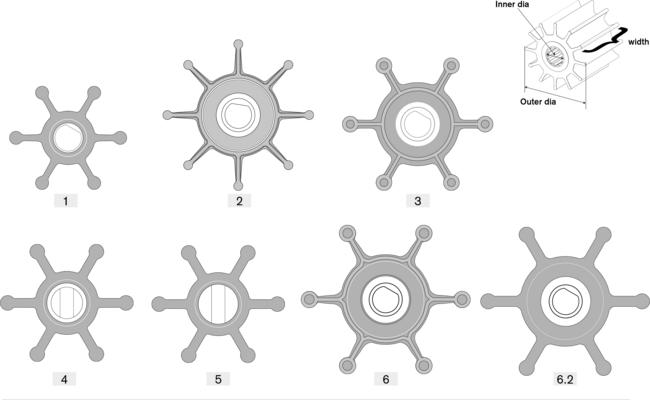

Ref. Pump Impeller Kit Material * Outer dia Inner dia Width Replaces Jabsco No
mm inch mm inch mm inch Europe USA
1 F2 09-1077B-9 Nitrile 35.2 1.29 8.0 / Flat 0.31 / Flat 12.7 0.50
2 F3 09-843S-9 Nitrile 45.2 1.78 8.0 / Flat 0.31 / Flat 12.8 0.50
3 TA3P10 09-1052S-9 Nitrile 45.2 1.78 8.0 / Flat 0.31 / Flat 12.8 0.50
4 F35 09-806B-1 MC97/EPDM 40.0 1.58 9.5 0.37 19.0 0.75 4528-0001
5 F35 09-808B-1 MC97/EPDM 40.0 1.58 12.0 0.47 19.0 0.75 22405-0001
6 F4 09-824P-1 MC97/EPDM 50.8 2.00 8.0 / Flat 0.31 / Flat 22.0 0.87
6 F4 09-824P-9 Nitrile 50.8 2.00 8.0 / Flat 0.31 / Flat 22.0 0.87 6303-0003
6.2 F4 09-824P-2 Polyeurethane 50.8 2.00 8.0 / Flat 0.31 / Flat 22.0 0.87 6303-007-P “Green Impeller”
* MC97/EPDM and Neoprene – for cooling, Nitrile – oil resistant

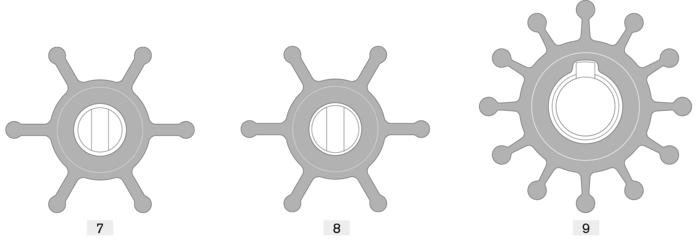

Ref. Pump Impeller Kit Material* Outer dia Inner dia Width Replaces Jabsco No
mm inch mm inch mm inch Europe USA
7 F4 09-810B-1 MC97/EPDM 50.8 2.00 12.0 0.47 22.0 0.87 18653-001
7 F4 09-810B-9 Nitrile 50.8 2.00 12.0 0.47 22.0 0.87
8 F4 09-1026B-1 MC97/EPDM 50.8 2.00 12.7 0.50 22.0 0.87 673-0001
8 F4 09-1026B-9 Nitrile 50.8 2.00 12.7 0.50 22.0 0.87 673-0003
9 F5 09-801B Neoprene 57.1 2.25 15.9 Key 0.63 / Key 31.5 1.24 4568-0001
* MC97 and Neoprene – for cooling, Nitrile – oil resistant



Ref. Pump Impeller Kit Material* Outer dia Inner dia Width Replaces Jabsco No
mm inch mm inch mm inch Europe USA
10 F5 09-1027B-1 MC97/EPDM 57.1 2.25 Splines 31.5 1.24 1210-0001
10 F5 09-1027B-10 MC97/EPDM 57.1 2.25 Splines 31.85 1.24
10 F5 09-1027B-9 Nitrile 57.1 2.25 Splines 31.5 1.24 1210-0003
11 F6 09-812B-1 MC97/EPDM 57.1 2.25 Splines 48.2 1.90 13554-0001
12 F7 09-1028BT-1** MC97/EPDM 65 2.56 Splines 50.2 1.98 17937-0001
12 F7 09-1028B-9 Nitrile 65 2.56 Splines 50.2 1.98 17937-0003
13 F75 09-821BT-1** MC97/EPDM 65 2.56 Splines 80 3.15
* MC97/EPDM and Neoprene – for cooling, Nitrile- oil resistant ** BT-1 replaces B

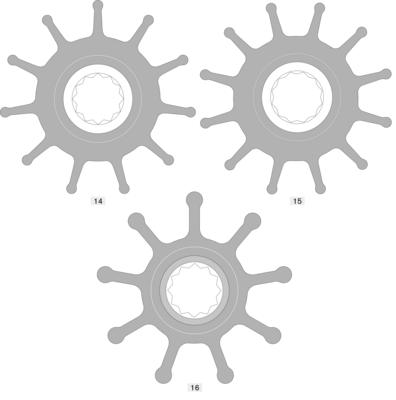

Ref. Pump Impeller Material* Outer dia Inner dia Width Replaces Jabsco No
mm inch mm inch mm inch Europe USA
14 F8 09-819B Neoprene 95 3.74 Splines 63 2.48 836-0001 17935-0001
14 F8 09-819B-9 Nitrile 95 3.74 Splines 63 2.48 836-0003 17935-0003
15 F9 09-814B Neoprene 95 3.74 Splines 88.5 3.48 21676-0001 17936-0001
15 F95 09-820B Neoprene 95 3.74 Splines 130 5.12
15 F98 09-842B Neoprene 95 3.74 Splines 180 7.09
16 F9 09-802B Neoprene 95 3.74 Splines 88.5 3.48 6760-0001
16 F8 09-1029B1) Neoprene 95 3.74 Splines 63 2.48 836-0001 17935-0001
1) Alternative impeller 09-819B * MC97/EPDM and Neoprene – for cooling, Nitrile – oil resistant

 Sherwood / Mercruiser Impeller replacement program

IMPELLER REPLACEMENT KITS

Sherwood / Mercrusier owners can now take advantage of premium replacement impellers from SPX FLOW Johnson Pump Marine.

  • Manufactured from our MC97/EPDM rubber compound

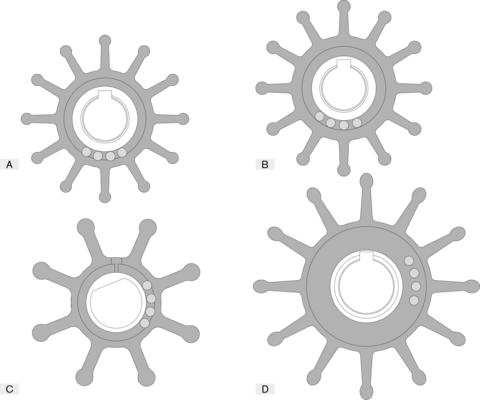

Ref. Pump Impeller Kit Material* Outer dia Inner dia Width Replaces Jabsco No
mm inch mm inch mm inch Europe USA
A 09-701B-1 MC97/EPDM 62.3 2.45 31.8 1.25 18838-0001
B 09-702B-1 MC97/EPDM 65.4 2.57 41.4 1.63 18948-0001
C 09-703P-1 MC97/EPDM 66.7 2.63 51 2.01 17954-0001
D 09-704BT-1 MC97/EPDM 84.1 3.31 73.4 2.89 18958-0001
* MC97/EPDM and Neoprene – for cooling, Nitrile – oil resistant



Ref. SPX FLOWJohnson Pump part no. Sherwood part no. Mercruiser part no. Jabsco part no. Engines / Pumps
A 09-701B-1 9959K – 18838-0001 Chris Craft; Chrysler Marine; Commander; Crusader; Glastron Boat Co.; Gray Marine; Interceptor; Onan; OMC; Pathfinder VolksWagon Eng.; Perkins Eng. U.S.; Pleasurecraft Marine; Universal Medalist; Volvo Penta; Yamaha; Westerbeke 24102; Sherwood 11353; Pleasure Craft 302 and 351; Chris Craft 350; Onan MDL3,4
B 09-702B-1 10615K – 18948-0001 Chris Craft; Chrysler Marine; Commander; Crusader; Escort (Skiltec); Gray Marine; Isuzu; Lenco; Marine Power; North American Engine; Onan; Osco Motors; OMC; Perkins Engine U.S.; Plesurecraft Marine; Volvo Penta;J.H. Westerbeke Corp; Crusader 97179; Chrysler 3675763; Chrysler 4142878; Cummins 4B; Onan MDL6; Chris Craft 454; Pleasure Craft 454
C 09-703P-1 – 47-59362T 17954-0001 Pump Quicksilver Model 46-72774 A32
D 09-704BT-1 17000K – 18958-0001 Cummins 6B 300Hp B Series; Cummins C Series; CAT 3208; CAT 3116; CAT 3126; Deere 6076; Sherwood Pump P17 series
