Aqua Jet – WD Pump Kits

Marine – Recreational / Wash Down Pumps

Discover the different wash down kits from SPX FLOW Johnson Pump. Always includes a high capacity Aqua Jet Wash Down Pump 3.5 or 5.2, hose strainer or PUMProtector inlet strainer, spray nozzle and the relevant connections – all in one package.

Categories: , ,
Johnson Pump
Aqua Jet Wash Down 3.5 GPM Pump Portable Kit

Aqua Jet Wash Down 3.5 GPM Pump Portable Kit

Kit includes everything you need to wash down your boat, RV, water craft and more.

  • Use any water available, fresh or salt water
  • Complete with collapsing hose, spray pistol, input hose with filter, 3.5 wash down pump, dual power option12V cigarette lighter power cord, and battery clips to power from battery terminals
  • 70 psi pressue
  • Fully ingition protected and CE approved wash down pump



Part No. Description
64736-00 Aqua Jet WD 3.5 GPM 12V Portable Kit
09-60616 Portable WD flexible hose
Available in USA only



Aqua Jet Wash Down 3.5 GPM Pump Kit

Aqua Jet Wash Down 3.5 GPM Pump Kit

13 L/min (3.5 GPM) wash down kit conveniently includes a high capacity Aqua Jet WD 3.5, 5 bar (70 psi), PUMProtector inlet strainer, spray nozzle, 7.5 meters (25’) of coiled wash down hose, 2-way panel switch – all in one package.

  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Easy, low cost maintenance
  • Quick-connect hose
  • Integrated pressure switch
  • Long service life



Technical Data

Part No. Part No. USA Description Connections Kit Includes
10-13558-01 JP-64535 Aqua Jet 3.5 Wash Down Pump Kit 12V ⅜” BSP x ½” barb Aqua Jet WD 3.5, inlet strainer, spray pistol, hose and connectors, barb port fittings, panel switch
10-13558-02 – Aqua Jet 3.5 Wash Down Pump Kit 24V
– 10-13399-0311 Aqua Jet 3.5 Wash Down Pump Kit 12V Clamshell ½” NPT / hose ¾”. ¾” GHT, Hose ¾” GHT Aqua Jet WD 3.5, inlet strainer, spray pistol, connectors, barb port fittings
– 10-13399-0411 Aqua Jet 3.5 Wash Down Pump Kit 24V Clamshell

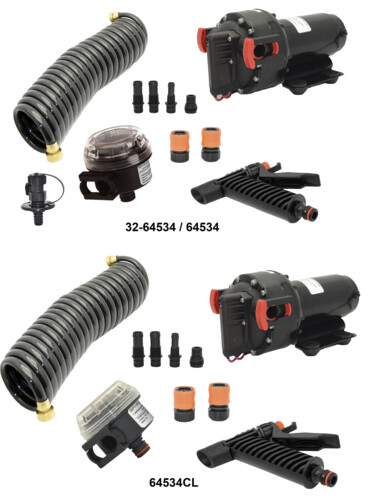

Aqua Jet Wash Down 5.2 GPM Pump Kit

Aqua Jet Wash Down 5.2 GPM Pump Kit

20 L/min (5.2 GPM) wash down kit conveniently includes a high capacity Aqua Jet WD 5.2, 5 bar (70 psi), PUMProtector inlet strainer, spray nozzle, bulk head fitting with valve, 7.5 meters (25’) of coiled wash down hose and a 2-way panel switch – all in one package.

  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Easy, low cost maintenance
  • Quick-connect hose
  • Integrated pressure switch
  • Long service life



Technical Data

Part number Part No. Description Connection Kit Includes
32-64534 64534 Aqua Jet 5.2 Wash Down Pump Kit, 12V ½” NPT / hose ¾”. ¾” GHT, Hose ¾” GHT Bulkhead fitting– Inlet ¾” hose, outlet ¾” GHT Aqua Jet WD 5.2, inlet strainer, spray pistol, hose, bulkhead fitting, hose connectors, barb port fittings, panel switch
32-64534R-24 64534-24 Aqua Jet 5.2 Wash Down Pump Kit, 24V
– 64534CL Aqua Jet 5.2 Wash Down Pump Kit, 12V, Clamshell ½” NPT / hose ¾”. ¾” GHT, Hose ¾” GHT Aqua Jet WD 5.2, inlet strainer, spray pistol, hose and connectors

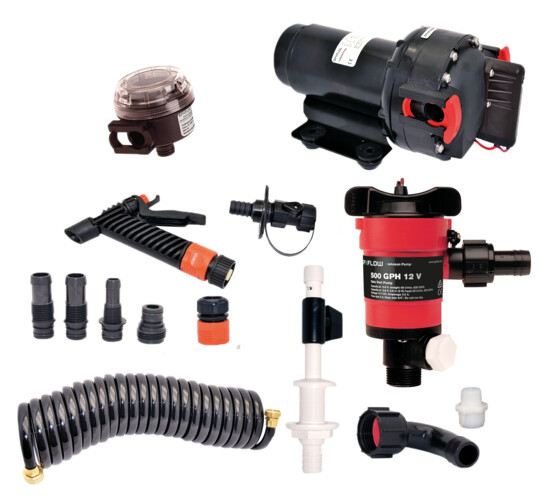

Aqua Jet Wash Down 5.2 GPM / 500 GPH Livewell Pump Kit

Aqua Jet Wash Down 5.2 GPM / 500 GPH Livewell Pump Kit

An Aqua Jet wash down/livewell kit that makes it easy to add a wash down and livewell pump to any boat.

  • High capacity Aqua Jet Wash Down 5.2 (5 bar/70 psi) pump
  • 500 GPH Twin Port Livewell Pump
  • PUMProtector Inlet Strainer
  • Spray nozzle
  • Bulk head fitting with valve
  • 7.5 meters (25′) of coiled wash down hose
  • Two illuminated panel switches – all in one package!



Technical Data

Part No. Part No. USA Description Connection Kit Includes
32-64634 64634 Aqua Jet WD 5.2 GPM/ 500 GPH 12V Livewell 3/8″ BSP, 1/2″ hose (Ø 13 mm) US 1/2″ NPT, 3/4″ hose  (Ø 19 mm) 3/4″ GHT Aqua Jet WD 5.2,  inlet strainer, spray pistol, hose and connectors, 500 GPH Twin Port Live Well Pump, Dura-Port fittings, Two 2-way panel switches
