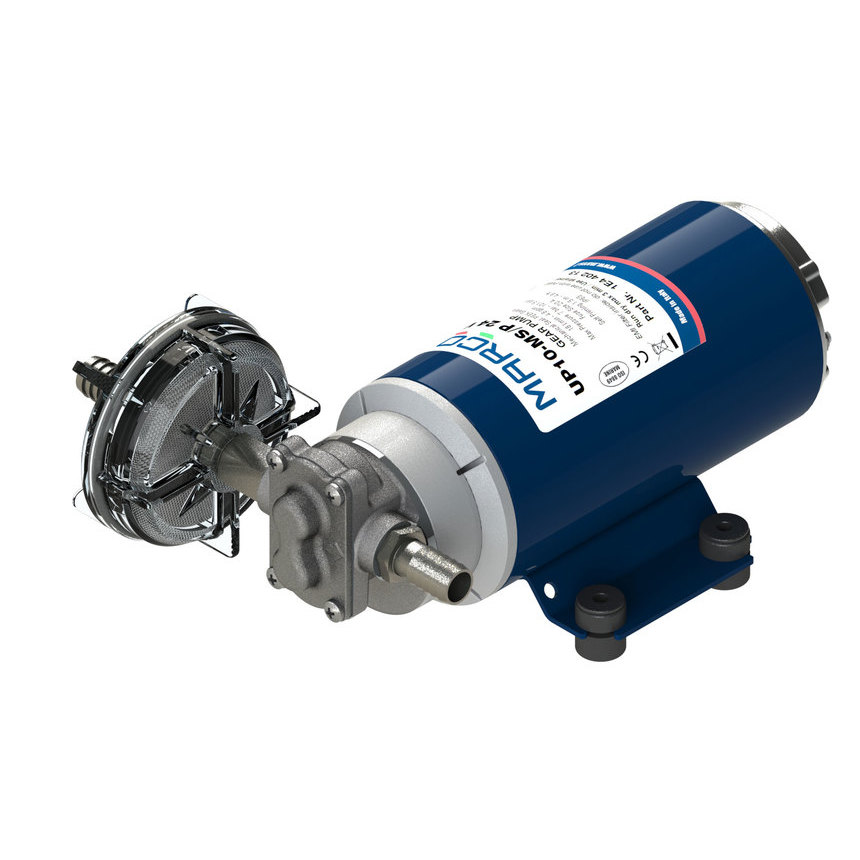

UP10-MS/P Pump with Mechanical Seal, PEEK gears 18 l/min

Self-priming electric pumps with compact mechanical seal and helical gears in PEEK. The motor shaft is made of AISI316, with a nickel-plated brass body. Mechanical seal with EPDM or FKM components. The enhanced motor is designed for continuous use under pressure.

View installation 1E440212 – UP10-MS/P 12V sheet here.

View installation 1E440213 – UP10-MS/P 24V sheet here.





SKU: 1E440212 Categories: , ,
Technical details

Technical details

Part n. Product Name Retail price (€ ea.) Tensione (V) Assorbimento (A) Fusibile (A) Portata (l/min) Adescamento (m) Pressione (bar) O-Ring Tenuta Hz Bocche (BSPP) Tubo (mm) Protezione IP Potenza Motore (W) Peso (kg)
1E440212 UP10-MS/P Login 12 30 35 18 3 8 EPDM EPDM DC 3/8″ 13 67 360W 3,8
1E440213 UP10-MS/P Login 24 15 20 18 3 8 EPDM EPDM DC 3/8″ 13 67 360W 3,8
1F440212 UP10-MS/P Login 12 30 35 18 3 8 FKM FKM DC 3/8″ 13 67 360W 3,8
1F440213 UP10-MS/P Login 24 15 20 18 3 8 FKM FKM DC 3/8″ 13 67 360W 3,8

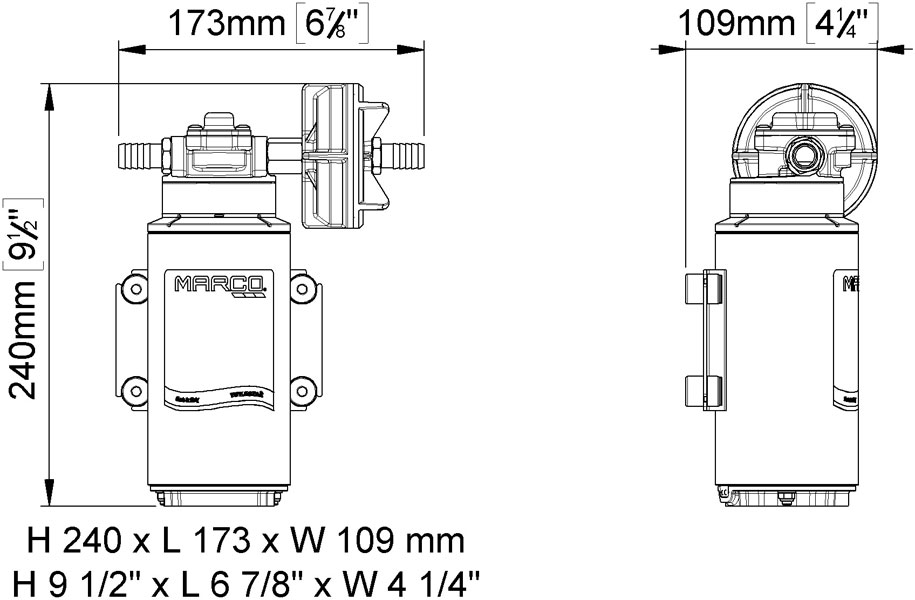

Drawing

Drawing
