Main Features:
• Easy upper deck installation, even by one person
• Highly efficient planetary system with low amperage consumption per pull capacity. Smaller cables lower production costs
• Compact size, easily accessible for maintenance
• IP65 rating
• Stainless steel base and chrome bronze drum
• Within the lowest amperage consumption in the market
• Gearbox is permanently lubricated, minifying maintenance
• Quite operation
| Code | Description | Motor size | Power Supply | Amps Work Load (A) | Max Line Speed | Line Speed at W.L | Net Weight with Drum (kg) | Maximum Pull | Working load (kg) |
|---|---|---|---|---|---|---|---|---|---|

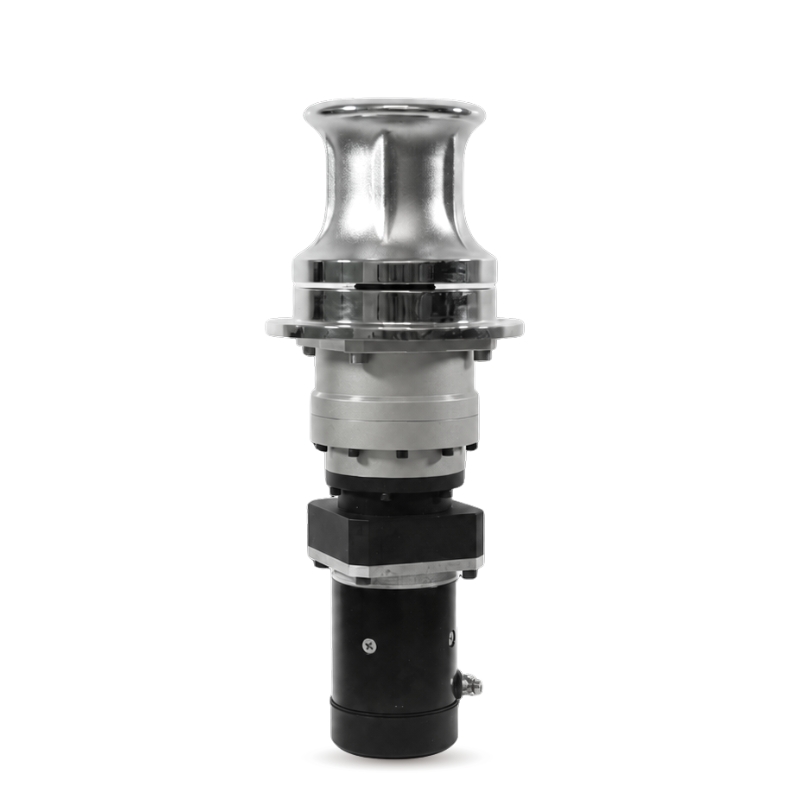

| 636915 | CAPSTAN ST2500 Planetary 2000W/24V CW/CCW | 1700W | 24V | 88A | 30 m/min | 15 m/min | 45.5kg | 1906kg | 635kg |
