MODELS & SPECS

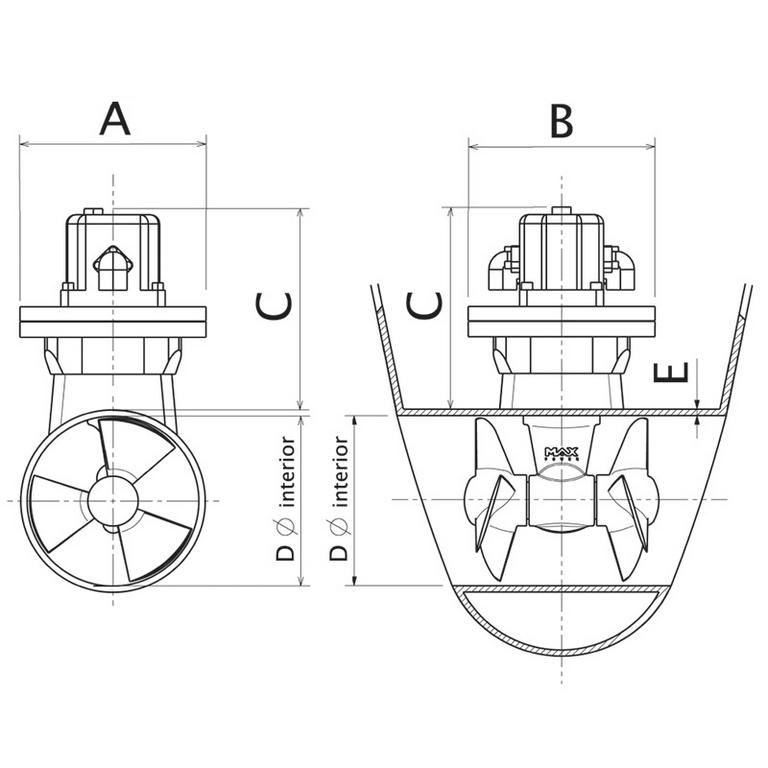

| Code | Thrust | Propellers | Power | Weight | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|
| 317598 | 275(kg) / 551(lbs) | 2 | 14(kw) | 24(kg) | 240(mm) | 240(mm) | 240(mm) | 315(mm) | 9 – 10(mm) |
| 317599 | 375(kg) / 606(lbs) | 2 | 20(kw) | 24(kg) | 240(mm) | 240(mm) | 240(mm) | 315(mm) | 9 – 10(mm) |

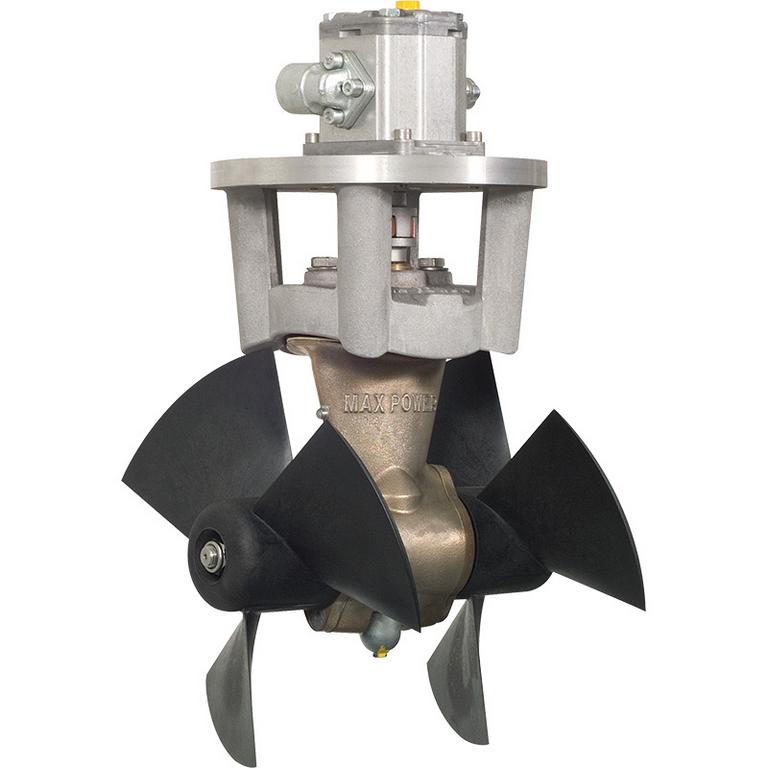

The HYD 325/325 is designed for motor boats and deep footed sailing yachts ranging from 52’-90’. The largest in the hydraulic tunnel thruster range, this twin propeller model has a 185mm diameter tunnel and is available in bronze only. Two different power options offer a thrust rating of up to 250/550 (kg/lbs) or 275/606(kg/lbs).
* Several versions of each model are available. Please consult your local Max Power distributor.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Only available with bronze driveleg
| Code | Thrust | Propellers | Power | Weight | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|
| 317598 | 275(kg) / 551(lbs) | 2 | 14(kw) | 24(kg) | 240(mm) | 240(mm) | 240(mm) | 315(mm) | 9 – 10(mm) |
| 317599 | 375(kg) / 606(lbs) | 2 | 20(kw) | 24(kg) | 240(mm) | 240(mm) | 240(mm) | 315(mm) | 9 – 10(mm) |
