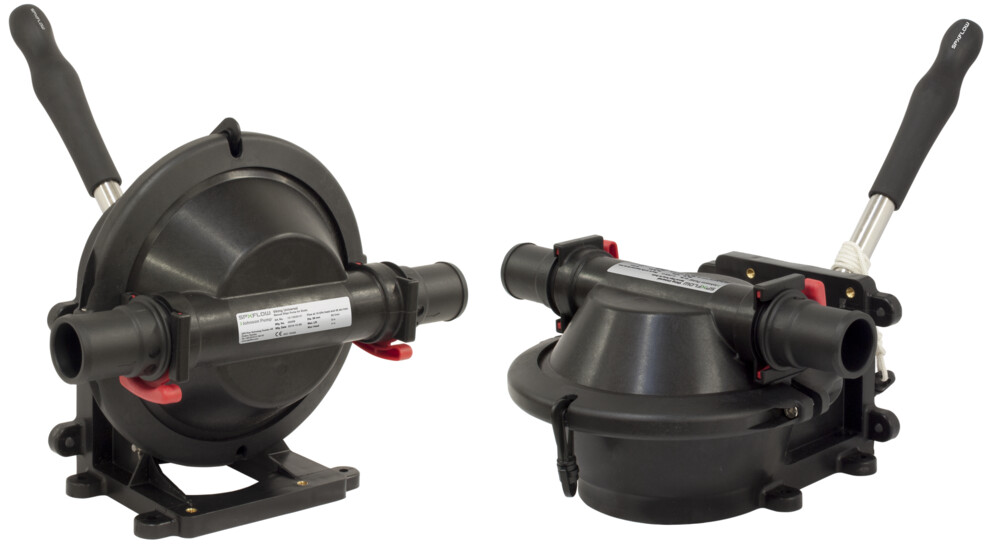

Viking Universal – Manual Hand-Powered Bilge Pump

Marine – Recreational / Manual Bilge Pumps

Heavy duty, self-priming, hand-powered bilge pump for nearly any type of installation. While designed as a powerful bilge pump, the Viking Universal’s large Ø 38 mm (1½”) valves enable the pump to also be used for pumping toilet waste.

Features

Features

To minimize required space the Viking Universal excels at adaption. The simple switching of the valves together with the connections allows you to choose flow direction.

  • Capacity of 60 L/min -16 GPM
  • Viking Universal’s mounting bracket allows for vertical or horizontal surface mounting
  • With the optional Through Deck kit the pump can be installed behind bulkheads or below the deck
  • The included KlickTite™ straight and 90° hose connections can be used in combination
  • The hose connections and even the pump housing can easily be rotated for optimal positioning
  • Fasteners are included for stowing the handle and the safety clasp ensures that the handle cannot be lost while not in use or during an emergency situation
Specifications

Specifications

Technical Data

Body and cover  Polypropylene plastic reinforced with 30% fiberglass
Diaphragm and valves Nitrile rubber
Wetted parts  PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber
Maximum suction  3 meters (10′)
Maximum head  4 meters (13′)
Combined suction/head 7 meters (23′)
Connection  KlickTite™ connectors 38 mm (1½”) hose. Both straight and 90˚ bends are included
Max. liquid temp  +60°C (140°F)
Weight  1.5 kg (3.3 lbs)
Viking Universal – Flow at 1 m (3.28′) head (10 kPa (1.45 psi) pressure and 45 strokes/min 60 L/min -16 GPM



Part number

Part No. Description Connection
10-13530-01 Viking Universal Manual Bilge Pump Ø 38 mm (1½”)



Options and Accessories

Options and Accessories

Through Deck Kit

With the optional Through Deck Kit the Viking Universal can be installed behind bulkheads or below the deck.

Part number

Part No. Description
09-36250 Viking Universal, Through Deck Kit



Connectors

Part No. Description Connection
09-47493 Connection, 90° In/Out Ø38 mm
09-47495 Connection, 90° In/Out Ø25 mm
09-47543 Connection, straight In/Out Ø38 mm
09-47544 Connection, straight In/Out Ø25 mm
