Technical details
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) | Cavi (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

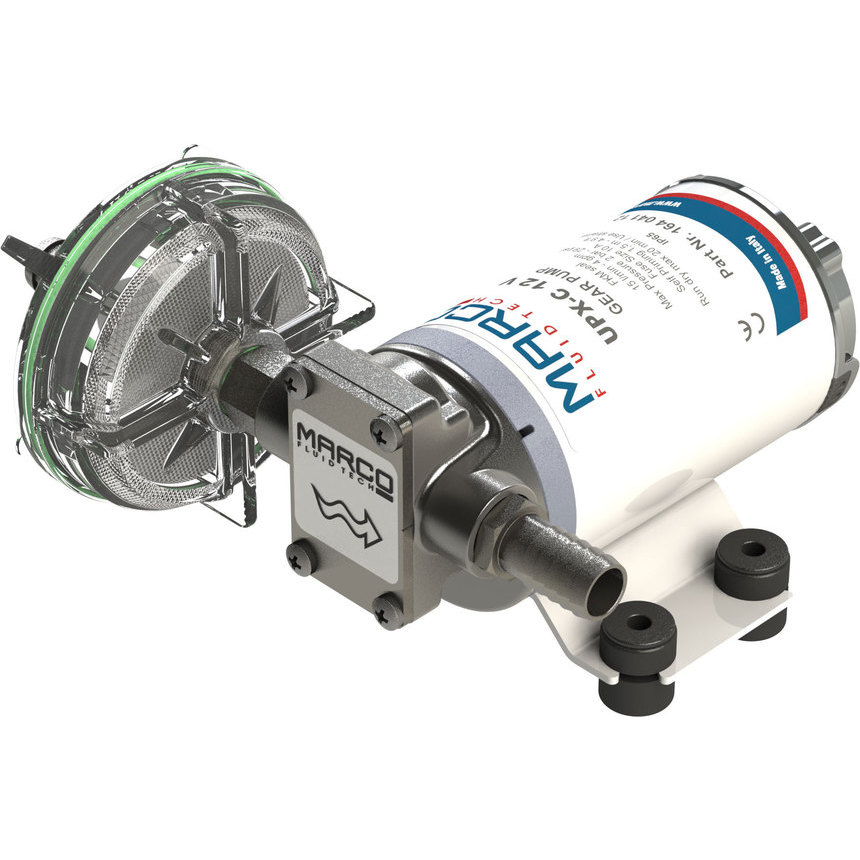

| 16404112 | UPX-C | Login | 12 | 6 | 10 | 15 | 1,5 | 2 | FKM | FKM | DC | 3/8″ | 13 | 65 | 120 | 1,4 | Yes |
| 16404113 | UPX-C | Login | 24 | 3 | 5 | 15 | 1,5 | 2 | FKM | FKM | DC | 3/8″ | 13 | 65 | 120 | 1,4 | Yes |
