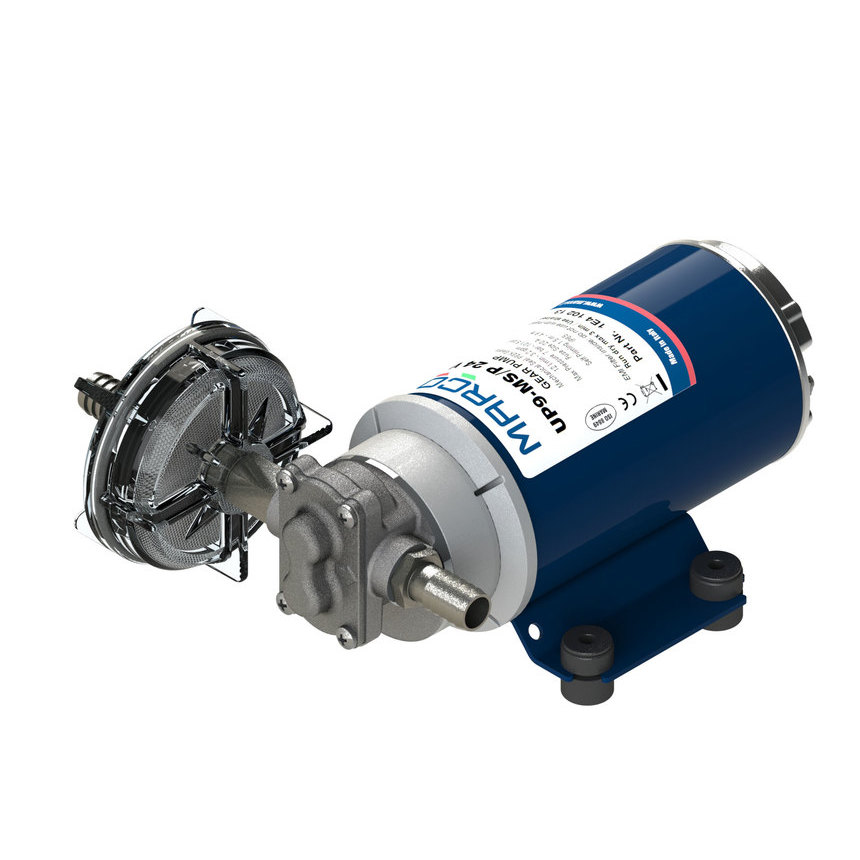

UP9-MS/P Pump with Mechanical Seal, PEEK gears 12 l/min

Self-priming electric pumps with compact mechanical seal and helical gears in PEEK. The motor shaft is made of AISI316, with a nickel-plated brass body. Mechanical seal with EPDM or FKM components. The enhanced motor is designed for continuous use under pressure.





SKU: 1E410212 Categories: , ,
Technical details

Technical details

Part n. Product Name Retail price (€ ea.) Tensione (V) Assorbimento (A) Fusibile (A) Portata (l/min) Adescamento (m) Pressione (bar) O-Ring Tenuta Hz Bocche (BSPP) Tubo (mm) Protezione IP Potenza Motore (W) Peso (kg)
1E410212 UP9-MS/P Login 12 18 25 12 3 6 EPDM EPDM DC 3/8″ 13 67 220 2,8
1E410213 UP9-MS/P Login 24 9 15 12 3 6 EPDM EPDM DC 3/8″ 13 67 220 2,8
1F410212 UP9-MS/P Login 12 18 25 12 3 6 FKM FKM DC 3/8″ 13 67 220 2,8
1F410213 UP9-MS/P Login 24 9 15 12 3 6 FKM FKM DC 3/8″ 13 67 220 2,8

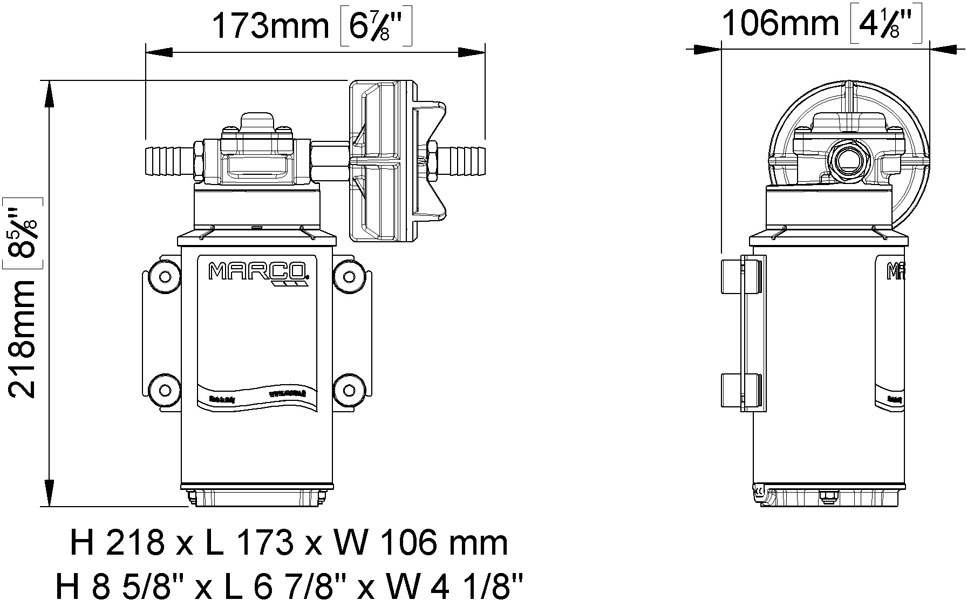

Drawing

Drawing
