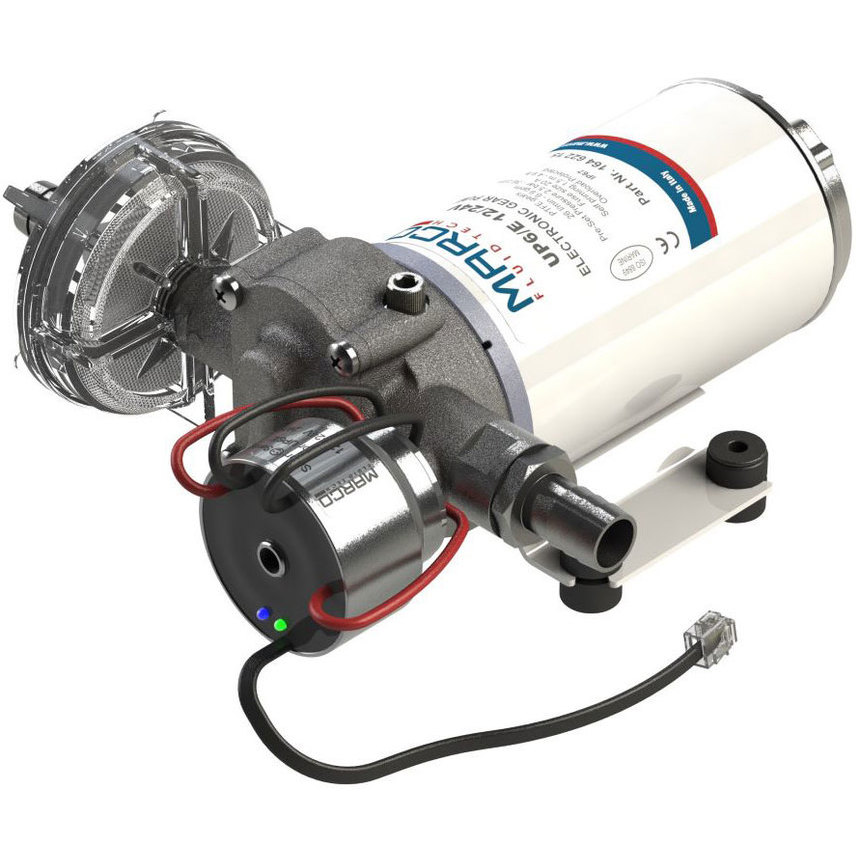

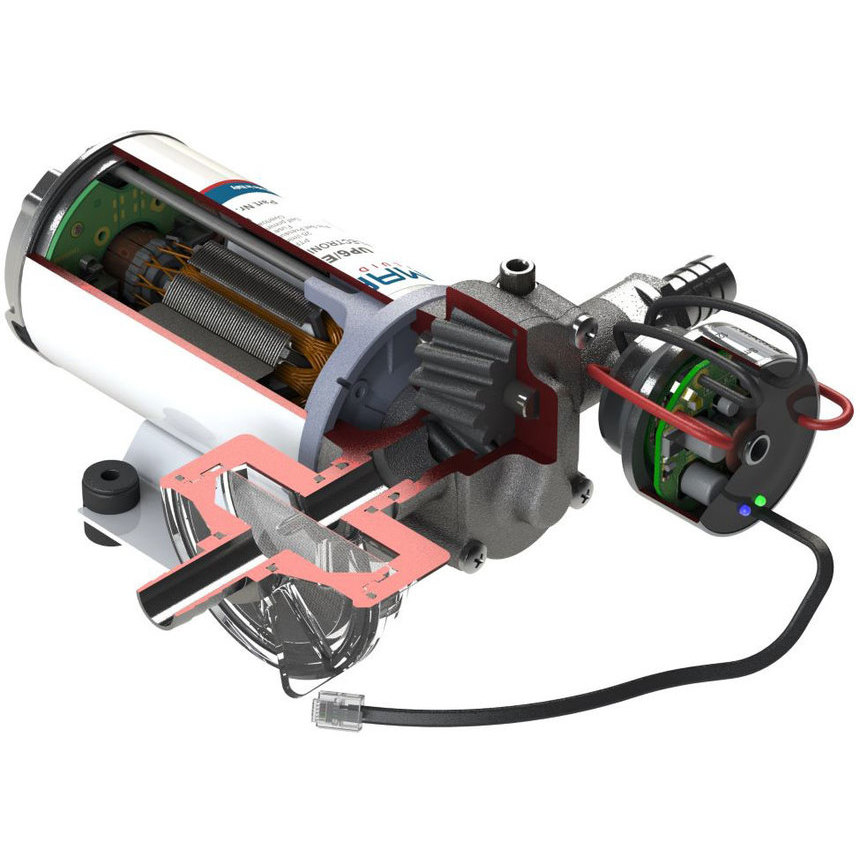

Self-priming automatic electric pump with helical PEEK gears, integrated check valve and electronic control. Nickel-plated brass body and stainless steel shaft. Main applications: fresh water pressure systems and shower kits on boats, rubber dinghies, sailing boats and campers. Available also with control panel.
View installation 16462213 – UP6/E 24V sheet here.
View installation 16462215 – UP6/E 12/24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16462213 | UP6/E | Login | 24 | 5 | 10 | 26 | 1,5 | 3,5 | NBR | HNBR | DC | 1/2″ | 16 | 67 | 180 | 3,7 |
| 16462215 | UP6/E | Login | 12/24 | 10 / 5 | 20 | 26 | 1,5 | 2,5 | NBR | HNBR | DC | 1/2″ | 16 | 67 | 180 | 3,7 |
