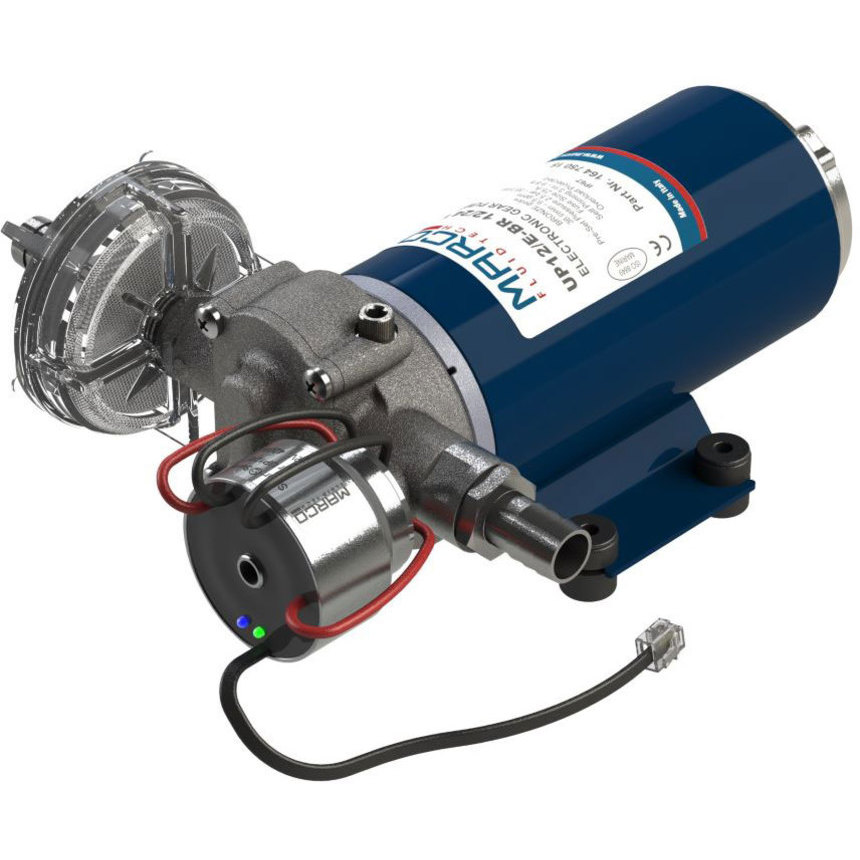

Self-priming automatic electric pump, 12/24V, with constant pressure electronic control for the transfer of diesel and oil. Bronze gears, NBR check valve, body and connections in nickeled brass, stainless steel shaft. FKM seal and NBR O-rings. Helical bronze gears guarantee constant pressure, heavy duty cycles, less noise and can operate in the absence of liquid. The pumps are supplied with a “High-Speed” setting for Diesel transfer. The integrated SCS control panel allows the switch to the “Low-Speed” mode for the transfer of oil and viscous liquids.
View installation sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16475015 | UP12/E-BR | Login | 12/24 | 14 / 7 | 30 | 36 | 3 | 2,5 | NBR | FKM | DC | 1/2″ | 16 | 67 | 360 | 4,9 |
