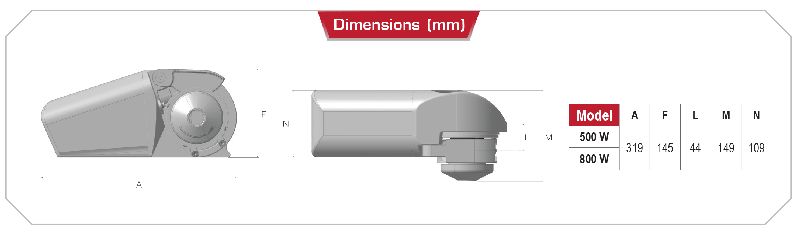

Model Dimension Diagram
Main Features
Standard Equipment
| Code | Motor size | Power Supply | Maximum Pull | Working load (kg) | Amps at Working Load (A) | Line Speed at W.L | Max Line Speed | Net Weight | Gipsy For Chain | Gipsy For Rope |
|---|---|---|---|---|---|---|---|---|---|---|
| 636699 | 800 W | 12 V | 900 kg | 125 kg | 80 | 20 m/min | 25 m/min | 11 kg | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand |
| 636738 | 500 W | 12 V | 630 kg | 95 kg | 65 | 18 m/min | 24 m/min | 11 kg | 6 mm, ISO 4565 | 10-12 mm, 3-strand |
| 636739 | 500 W | 12 V | 630 kg | 95 kg | 65 | 18 m/min | 24 m/min | 11 kg | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand |
| 636740 | 800 W | 12 V | 900 kg | 125 kg | 80 | 20 m/min | 25 m/min | 11 kg | 6 mm, ISO 4565 | 10-12 mm, 3-strand |
