Technical specifications
| FREQUENCY RANGE | 156/162 MHz |
| GAIN | 3dBi |
| NOMINAL IMPEDANCE | 50 ohms |
| POLARIZATION | Vertical |
| SWR | ≤ 1,3 at 156,8 MHz |
| MAX INPUT POWER | 100 W |
| DC GROUND | Yes |
| TERMINATION | cable |
| ANTENNA LENGHT | 1,5m/5′ |
| ANTENNA WEIGHT | 450g/15,90oz |

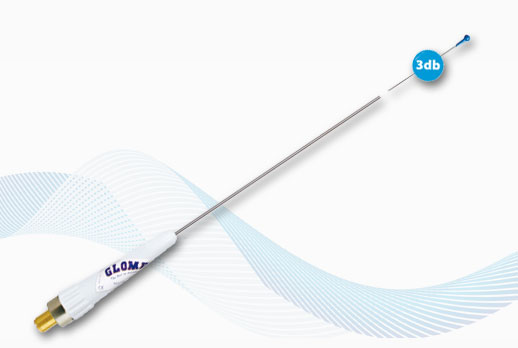

RA112 – VHF – 3DB – 1,5M (5′) – FIBREGLASS – NYLON FERRULE – 4,5M (15′) COAXIAL CABLE.
The CLASSIC series antennas are designed to fit the specific needs of all motorboats.
RA112 is the ideal choice for excellent performance and reduced size, just 1,5 m (5′) height. It’s a VHF antenna equipped with white nylon ferrule and polyurethane tube resistant to UV-rays.
| FREQUENCY RANGE | 156/162 MHz |
| GAIN | 3dBi |
| NOMINAL IMPEDANCE | 50 ohms |
| POLARIZATION | Vertical |
| SWR | ≤ 1,3 at 156,8 MHz |
| MAX INPUT POWER | 100 W |
| DC GROUND | Yes |
| TERMINATION | cable |
| ANTENNA LENGHT | 1,5m/5′ |
| ANTENNA WEIGHT | 450g/15,90oz |
