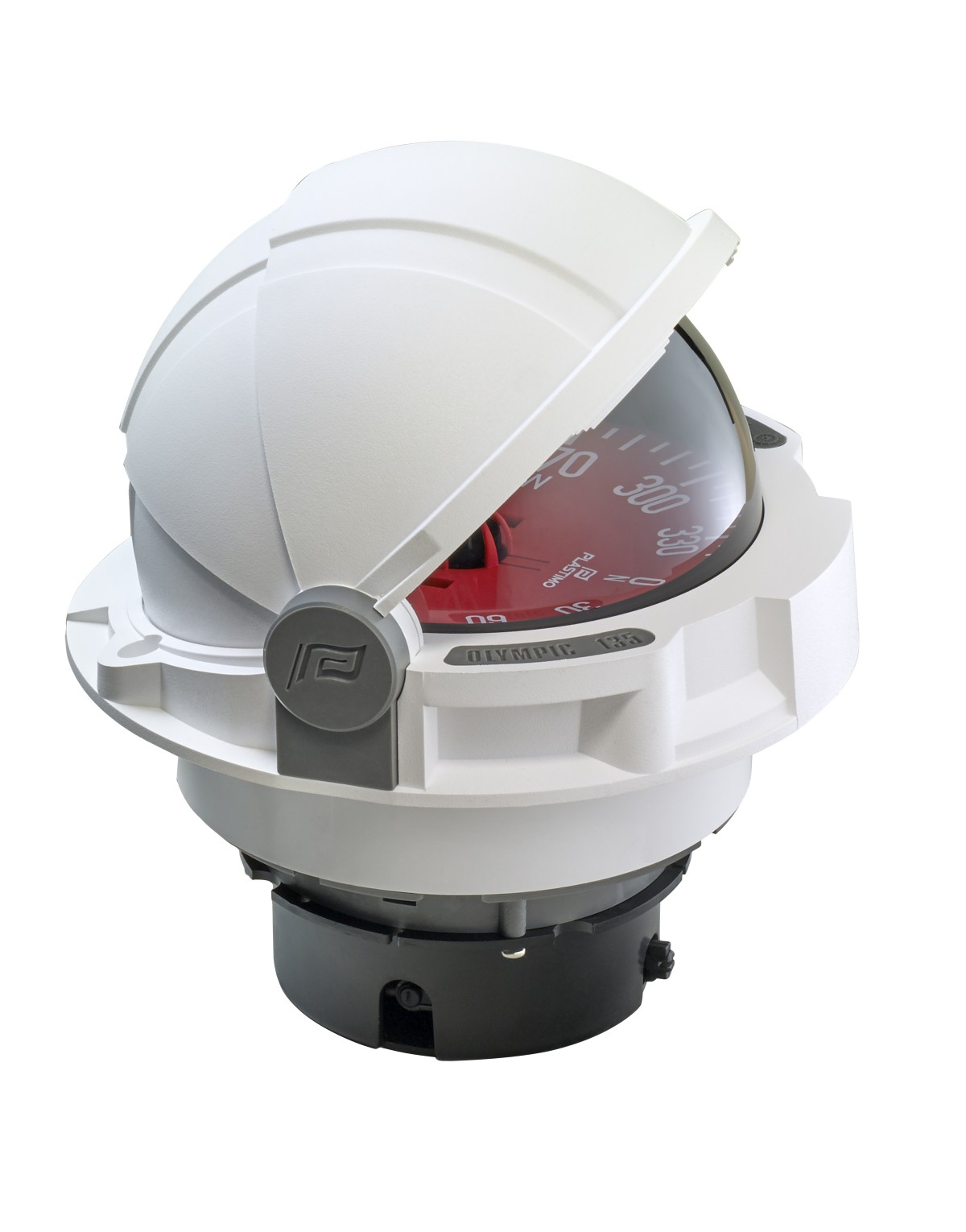

Olympic 135 compass

Sailboats 9 m and above (30 ft+).
Flushmount compass for steering console or steering wheel pedestal, with or without binnacle.
Large flat card, ideal when steering standing.
Articulated protective hood in 3 sliding parts.
SOLAS-MED approved : equally suitable for professional fishing boats and commercial vessels.

SKU: 65476 Categories: ,
Plastimo
Models

Models

Model Mounting Card Ref.
BLACK compass, no binnacle Flushmount or Pedestal Black card 65476
BLACK compass, no binnacle Flushmount or Pedestal Red card 65533
WHITE compass, no binnacle Flushmount or Pedestal Black card 65534
WHITE compass, no binnacle Flushmount or Pedestal Red card 65535
BLACK compass + white binnacle On pedestal Red card 65530
BLACK compass + white binnacle On pedestal Black card 65529
WHITE compass + white binnacle On pedestal Red card 65532
WHITE compass + white binnacle On pedestal Black card 65531
 WORLD BALANCE : around the world with one single compass.
Features

Features

OLYMPIC®  135
Boat size Sailboat 9 m and above  (30 ft+)
Card Flat card, graduated every 5°, apparent Ø 130 mm.Heading numerals every 30°.
Protective hood Unique articulated protective hood : built-in sliding cover,composed of 3 telescopic parts.
Mounting Pedestal mounting or minimal height flush mounting.Choice of 2 binnacles (96 mm high), pedestal Ø 175 mm.
Lubber lines 3 lubber lines, at 45°.
Compensation Supplied as standard.
Lighting 12-24 V LED.
Supplied with Drilling template.
Homologation SOLAS-MED 96/98
