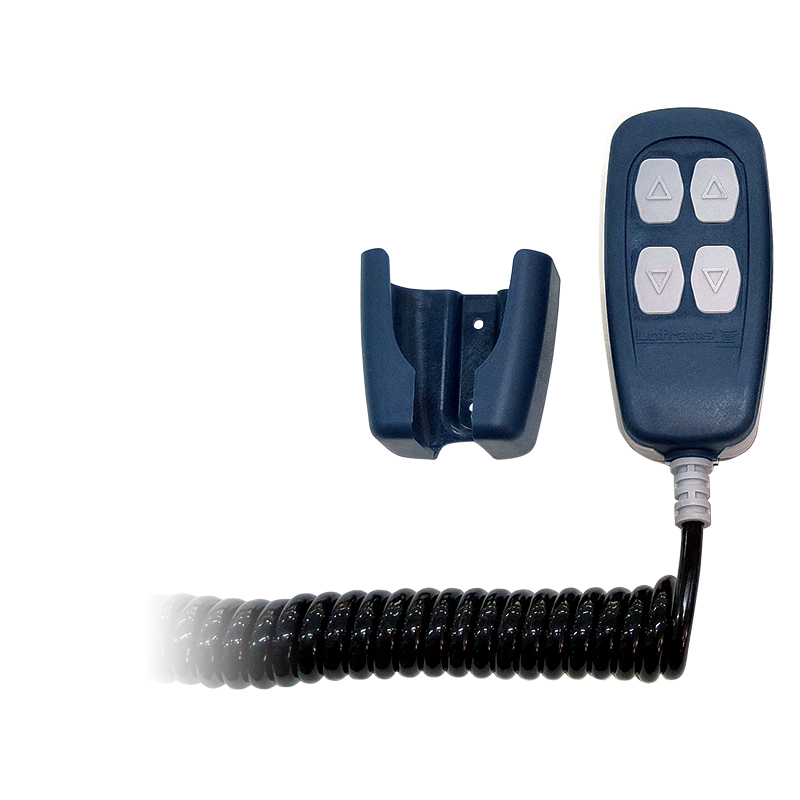

Lofrans’ HH Remote Control LFR400 for Windlass

  • Designed for remote operation of various electrically operated equipment on board such as windlasses, cranes, gangways, sea ladders etc.
  • Made of high-strength glass reinforced PP combined with a rubber gasket to ensure advanced durability, perfect watertightness, and a secure grip
  • Ergonomic design
  • Solid and durable construction
  • IP67-rated with waterproof plug & socket
  • Flexible cable extensible up to 4 metres (approximately) for maximum freedom on board during anchoring manoeuvring
  • Socket & plug with pre-wired cables for easy and trouble-free installation
  • Parallel connection
  • 4 buttons for operating two windlasses or other onboard equipment
  • Support bracket for stowing

The protection rating applies when the product is installed.

The weight is for the control unit only (excluding the socket).

SKU: 60048 Categories: , ,
Specifications

Specifications

Code Description Command Transmission Number of Button Voltage Operative temperature IP protection rated Max Contacts Amperage (A) Weight (g) Dimension (mm)
60048
 Lofrans’ HH Remote Control LFR400 for Windlass Wire 4 10 – 30 -10 to +60 IP 67 2 356 gr 106 x 50 x 32
