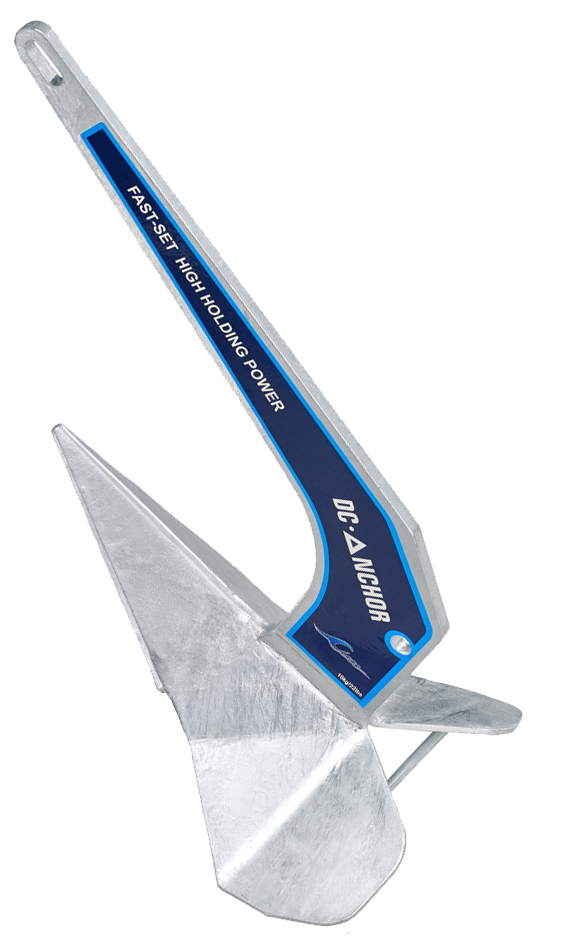

DC anchor

Plough anchor with high holding power.
The shaft shape and broad-shoulder flukes combined with a weighted tip contribute to a low gravity point, providing self launching performance and instant setting.
Adapts naturally to a bow roller.
LLOYD’S REGISTER
Marine grade alloy, hot dipped galvanised.
Yieldstrength 420 MPa.

SKU: 63715 Categories: ,
Plastimo
Models

Models

Boat length max. Ref. Weight Kg Weight Lb A H
9-12 m 63715 6 14 593 mm 254 mm
12-15 m 63716 10 22 695 mm 293 mm
15-18 m 63717 16 35 812 mm 339 mm
18-20 m 63718 20 44 877 mm 370 mm
20-21 m 63719 25 55 945 mm 397 mm
21-23 m 63720 32 70 1023 mm 425 mm
23-24 m 63721 40 88 1099 mm 461 mm
24-27 m 63722 50 110 1175 mm 486 mm
27-30 m 63723 63 140 1270 mm 537 mm
6-9 m 63714 4 9 514 mm 217 mm
Features

Features

Ref.  B  C D E F G
63714 303 mm 230 mm 16 mm 35 mm 8 ± 0,35 mm 32 mm
63715 350 mm 265 mm 16 mm 35 mm 10 ± 0,4 mm 32 mm
63716 410 mm 310 mm 19 mm 42 mm 12,1 – 13,5 mm 38 mm
63717 482 mm 632 mm 19 mm 42 mm 12,1 – 13,5 mm 44 mm
63718 518 mm 392 mm 24 mm 48 mm 16 ± 0,4 mm 48 mm
63719 558 mm 415 mm 24 mm 48 mm 16 ± 0,4 mm 52 mm
63720 603 mm 445 mm 26 mm 62 mm 18 ± 0,5 mm 56 mm
63721 665 mm 489 mm 24 mm 48 mm 20 ± 0,5 mm 52 mm
63722 695 mm 523 mm 24 mm 48 mm 20 ± 0,5 mm 52 mm
63723 760 mm 567 mm 28 mm 56 mm 22 ± 0,5 mm 60 mm
