YOUR BOAT. YOUR RULES.

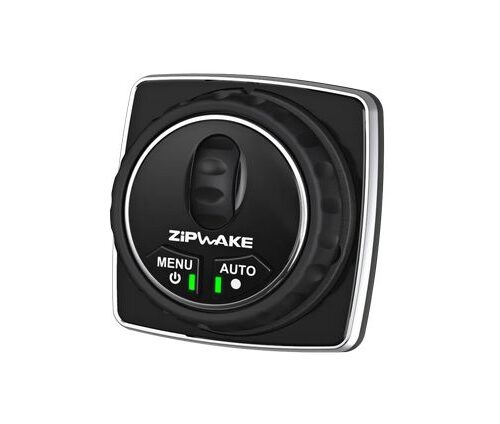

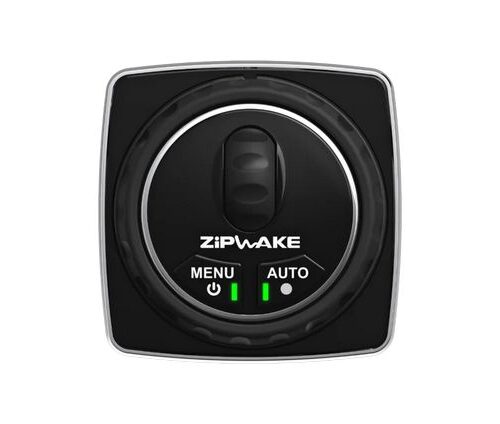

The smart Zipwake Mini Controller brings together the best of two worlds: clean dashboard designs and easy trim control. All so you can get the most out of every day on the water – whatever the conditions.
ALWAYS WITHIN REACH
Rain, wind and waves – when the weather doesn’t cooperate, touchscreens can be difficult to use. With the Mini Controller, there’s no need to stay home.
Small and discreet, the Mini Controller is the perfect complement to any Zipwake system equipped with the Integrator Module and touchscreen MFDs. It acts as an “eyes-free” remote control for the Zipwake App, giving you total system control for optimum trim without having to reach for a touchscreen.
USER-FRIENDLY AND INTUITIVE
You can either let the Zipwake system work automatically or make manual adjustments with the user-friendly and intuitive control wheels.
EASY TO INSTALL – ANYWHERE
The rugged and waterproof Mini Controller can be surface mounted or flush mounted within reach anywhere – and in any position – from the cockpit of a day cruiser to the flybridge of a yacht. For even more convenience, the Mini Controller’s Key Sense can be connected to the engine ignition for automatic system power-on.
MAKE IT YOUR OWN

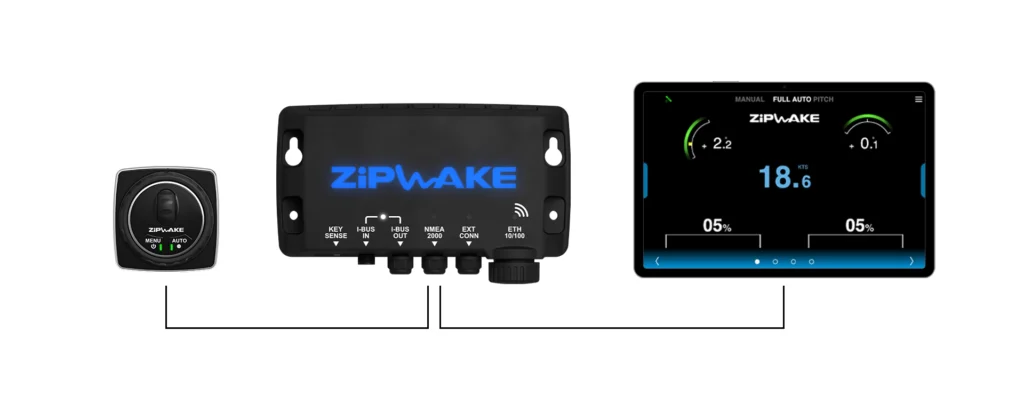

Zipwake is designed for customization, and now you have more ways than ever to make it your own. You can choose a basic set-up with Zipwake’s proven control panel, connect MFDs and smart devices using the Integrator Module – and add the Mini Controller for easy control. It’s all up to you.
SHORT FACTS
Fully automatic
User-friendly and intuitive controls
Multifunction buttons
Auto power on/off via ignition key sense
Surface and flush mount
Waterproof design
Up to 3 Mini Controllers in the system
Simplifies manual adjustments
SPECIFICATIONS
| MODEL | MC |
| INDICATORS | RGB LEDS |
| SUPPLY VOLTAGE | 12 – 32 V DC |
| POWER CONSUMPTION | 2 W MAX |
| OPERATING TEMPERATURE | -20° to +80°C (-4° to +176°F) |
| STORAGE TEMPERATURE | -40° to +90°C (-40° to +194°F) |
| WATERPROOF RATING | IP67 |
| COMPASS SAFE DISTANCE | 0.5 m (1.7 FT) |
| COMPLIANCE | CE, FCC |
| WEIGHT | 0.1 kg (0.22 LBS) |
ORDERING DATA
AVAILABLE AS AN ACCESSORY
AVAILABLE AS A SPARE PART
MC 2012401 WITH STANDARD CABLE 3 M
