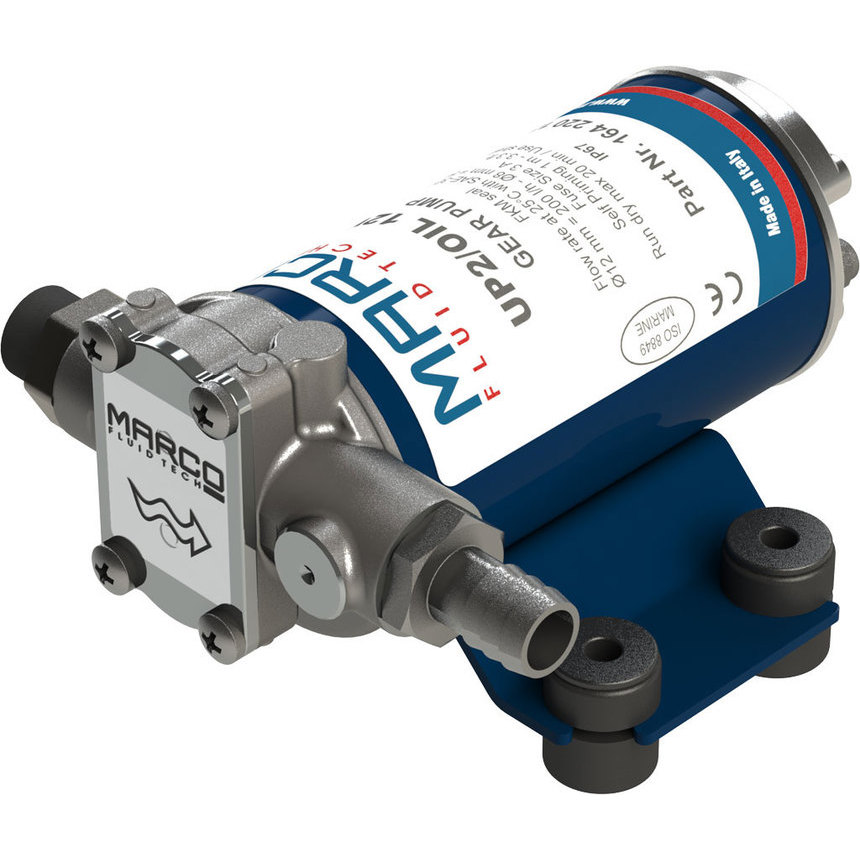

Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps with the special tubes kit (OK1) and for engines lubricating operations.
View installation 16422012 – UP2/OIL 12V sheet here.
View installation 16422012-US – UP2/OIL sheet here.
View installation 16422013 – UP2/OIL 24V sheet here.
View installation 16422013-US – UP2/OIL 24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Adescamento (m) | Portata (l/min) | Pressione (bar) | Portata ø 6 (l/min) | Portata ø 8 (l/min) | Portata ø 13 (l/min) | Tenuta | O-Ring | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16422012 | UP2/OIL | Login | 12 | 2,5 | 3 | 1 | 3,3 | 1,5 | 0,3 | 0,9 | 3,3 | FKM | NBR | DC | 3/8″ | 12 | 67 | 90 | 1,2 |
| 16422013 | UP2/OIL | Login | 24 | 1,3 | 1,5 | 1 | 3,3 | 1,5 | 0,3 | 0,9 | 3,3 | FKM | NBR | DC | 3/8″ | 12 | 67 | 90 | 1,2 |
