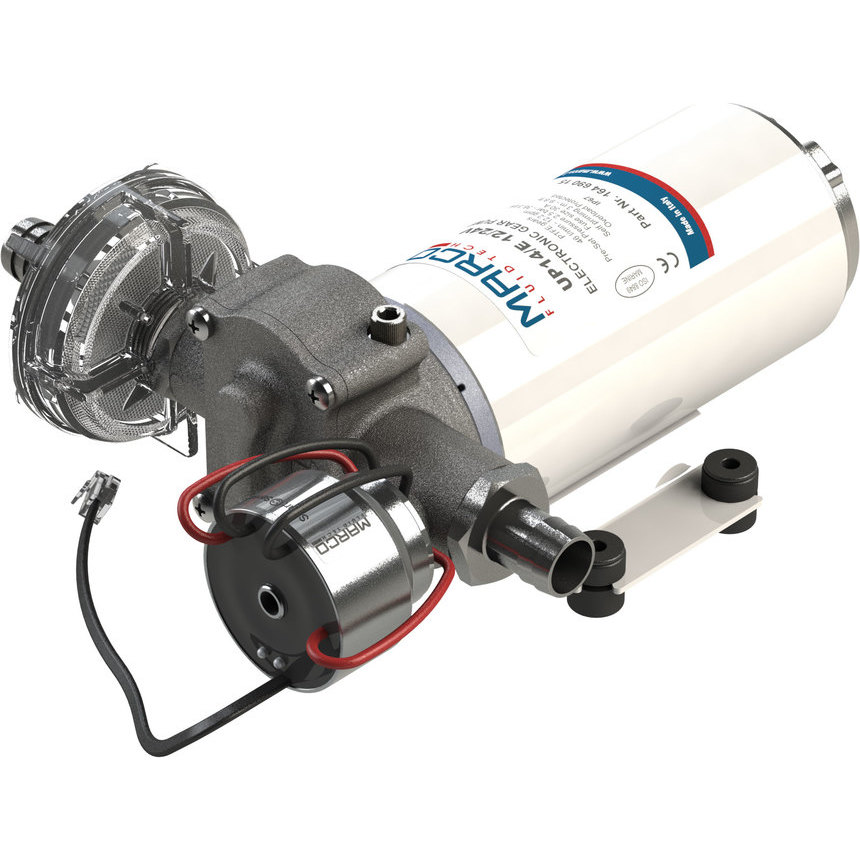

Self-priming automatic electric pump with helical PEEK gears, integrated check valve and electronic control. Nickel-plated brass body and stainless steel shaft. Main applications: fresh water pressure systems and shower kits on boats, rubber dinghies, sailing boats and campers. PCS control panel included.
View installation 16469013 – UP14/E 24V sheet here.
View installation 16469015 – UP14/E 12/24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16469013 | UP14/E | Login | 24 | 9 | 15 | 46 | 3 | 3,5 | NBR | HNBR | DC | 3/4″ | 19 | 67 | 400 | 5,2 |
| 16469015 | UP14/E | Login | 12/24 | 18 / 9 | 30 | 46 | 3 | 2,5 | NBR | HNBR | DC | 3/4″ | 19 | 67 | 400 | 5,2 |
