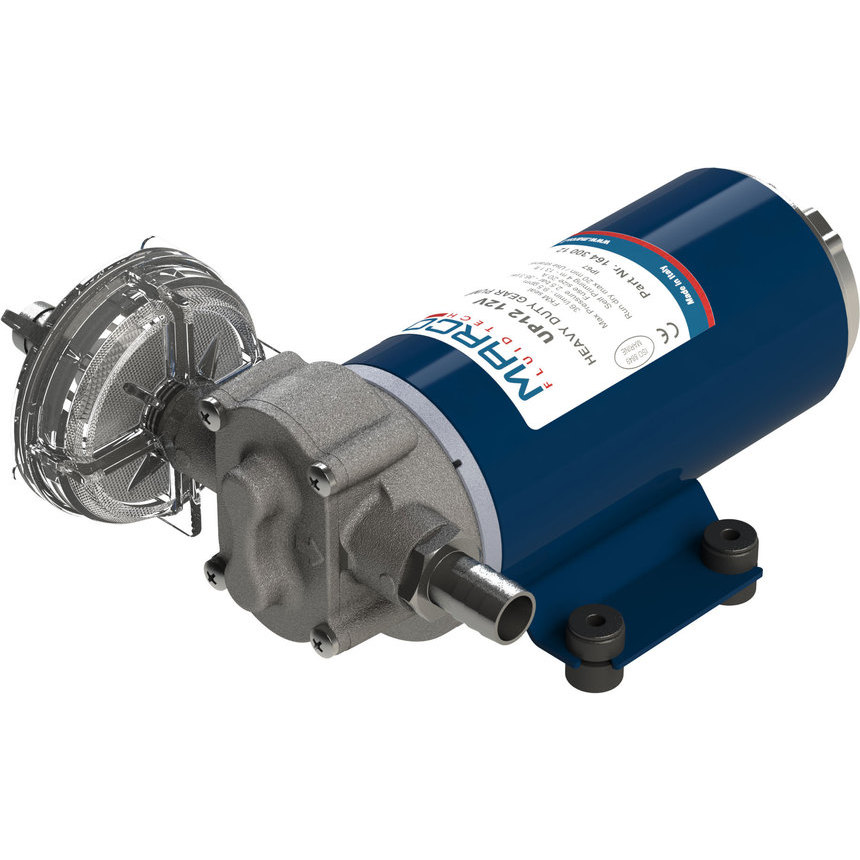

Self-priming electric pumps of small dimensions with bronze gears for transferring of liquids. Pump body in nickel-plated brass and stainless steel shaft. Main applications: transfer of diesel fuel, antifreeze.
View installation 16430012 – UP12 12V sheet here.
View installation 16430012-US – UP12 12V sheet here.
View installation 16430013 – UP12 24V sheet here.
View installation 16430013-US – UP12 24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16430012 | UP12 | Login | 12 | 28 | 30 | 36 | 4 | 2 | NBR | FKM | DC | 1/2″ | 16 | 67 | 360 | 4,5 |
| 16430013 | UP12 | Login | 24 | 14 | 20 | 36 | 4 | 2 | NBR | FKM | DC | 1/2″ | 16 | 67 | 360 | 4,5 |
