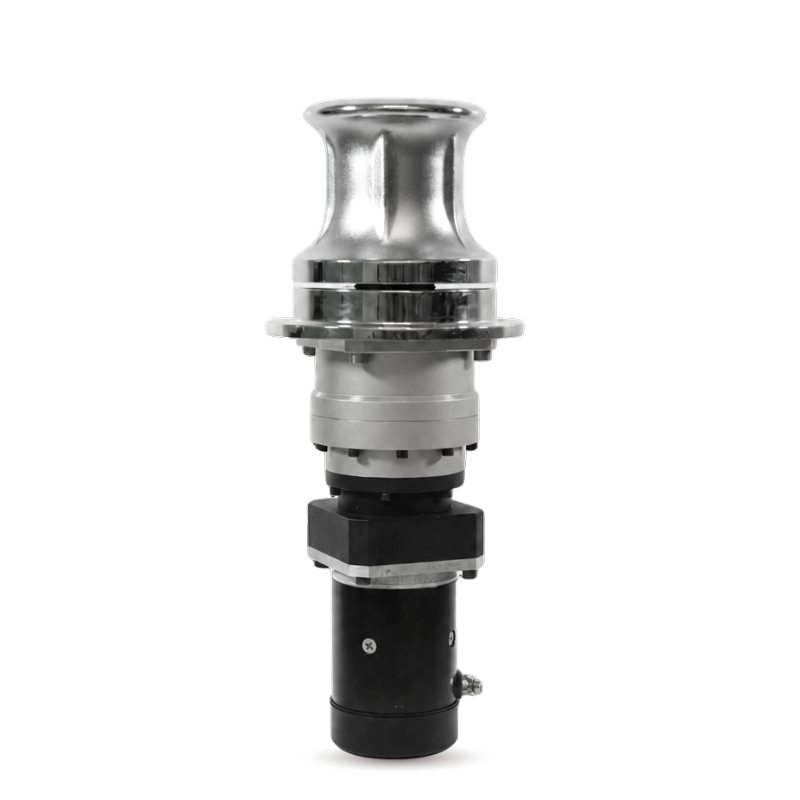

ST2000 Planetary Inline Capstan

Main Features:

  • Easy upper deck installation, even by one person
  • Highly efficient planetary system with low amperage consumption per pull capacity. Smaller cables lower production costs
  • Compact size, easily accessible for maintenance
  • IP65 rating
  • Stainless steel base and chrome bronze drum
  • Within the lowest amperage consumption in the market
  • Gearbox is permanently lubricated, minifying maintenance
  • Quite operation
SKU: 636908 Categories: , ,
Specifications

Specifications

Code Description Motor size Power Supply Amps Work Load (A) Max Line Speed Line Speed at W.L Net Weight with Drum (kg) Working load (kg) Maximum Pull
636908 CAPSTAN ST2000 Planetary 1500W/24V CW/CCW 1500W 24V 98A 27 m/min 13.5 m/min 42.5kg 545kg 1890kg
