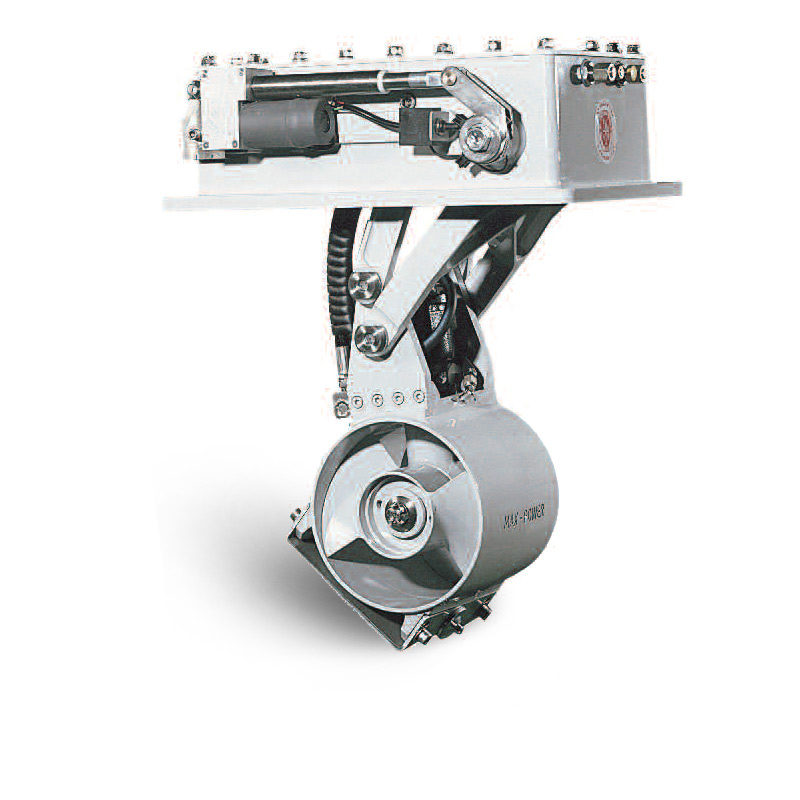

Hydraulic Retractable Thruster R200

Benefiting from a control system redesign, the R200 is the smallest model in the Max Power RetractTM range. Designed for top end production boats, this hydraulic retractable thruster has long been installed in prestigious yachts ranging from 45 – 68’.

Features
Power ratings (hp) 10/17
Thrust: 10 kg per kw
Max. hydraulic power (kw): 13
Hydraulic power requirements (up to): 20 lpm/ 220 bar – 30 lpm/ 250 bar
Power pack options: PTO &24V
Hydraulic motor: Piston
Opening/ closing mechanism: Electric & manual
Propellers: Duo, 2 blades
Weight (kg): 35
MODELS & SPECS

MODELS & SPECS

Code Model HP KW Flow Pressure Motor
317803 R200/6 10.72 8 22 LPM 220 B 6cc
317804 R200/8 16.08 12 30 LPM 240 B 8 cc
