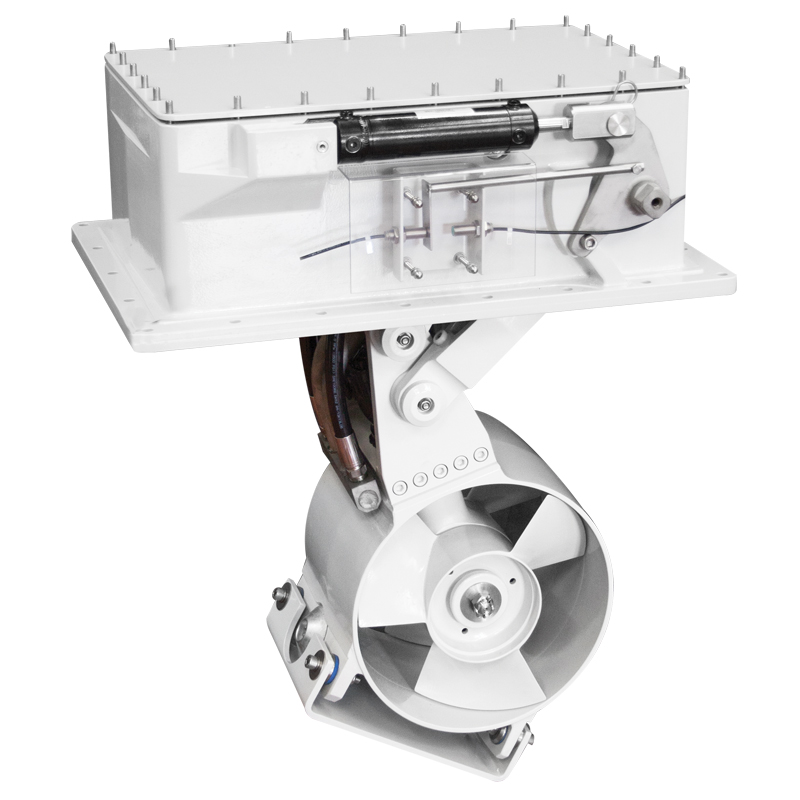

Hydraulic Retractable Thruster R300

Newly redesigned, the R300 now benefits from evolutions already pioneered on the R450. Both light & powerful this unit has been consistently specified by designers around the world for many years and is ideal for yachts from 60-104’.

Features
Power ratings (hp) 20/34
Thrust: 11 kg per kw
Max. hydraulic power (kw): 25
Hydraulic power requirements (up to):  35 lpm/ 260 bar – 55 lpm/ 270 bar
Power pack options: PTO &24V
Hydraulic motor: Piston
Opening/ closing mechanism: Electric & manual
Propellers: Duo, 3 blades
Weight (kg): 73
MODELS & SPECS

MODELS & SPECS

Code Model HP KW Flow Pressure Motor
317810 R300/15 14.74 11 29 LPM 240 B 15cc
317811 R300/21 23.59 17.6 44 LPM 240 B 21cc
