G 509

Hydraulic crane for flybridge.

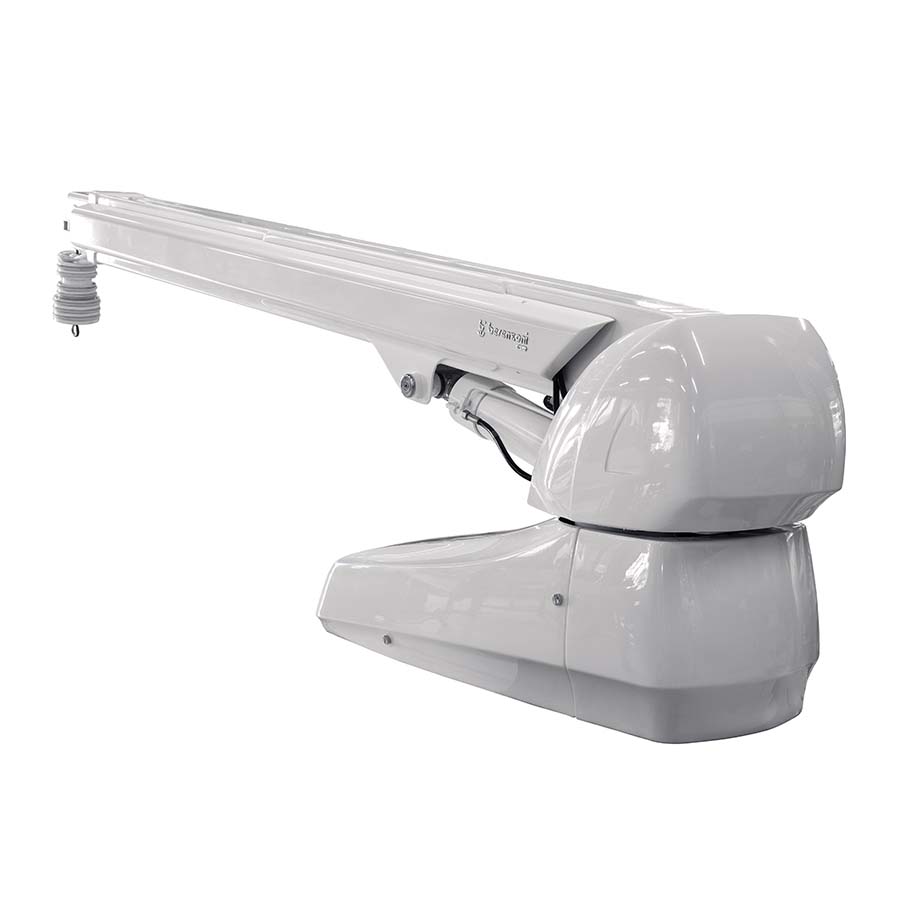

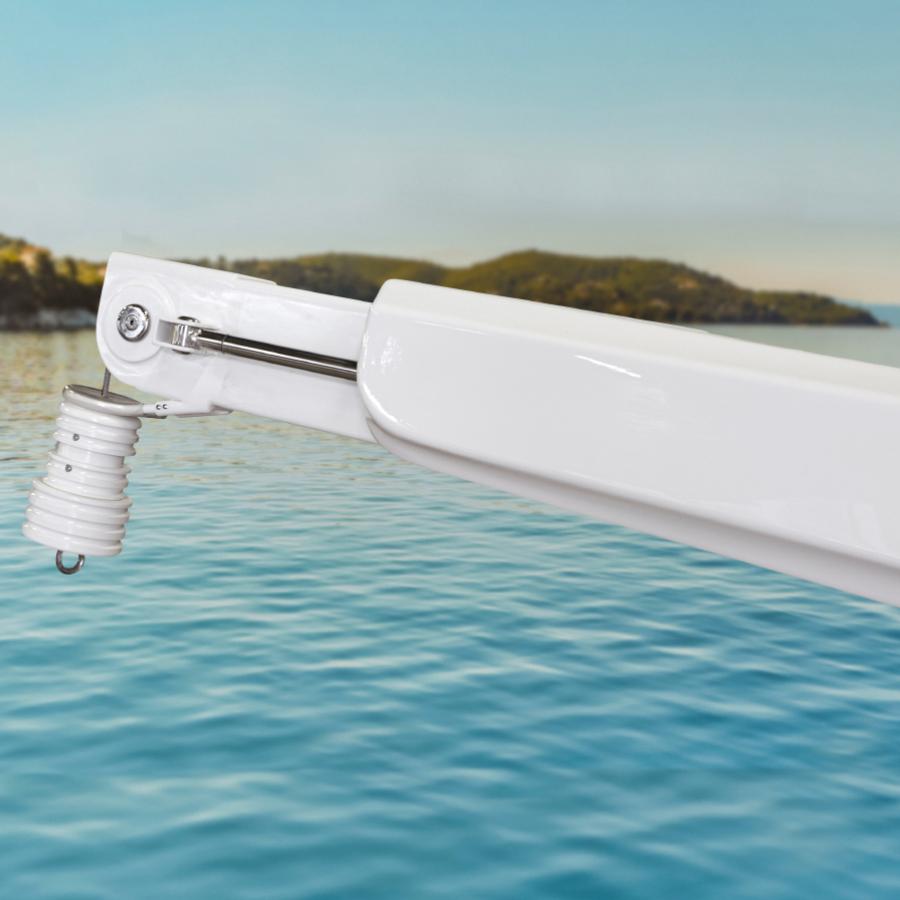

Hydraulic crane with telescopic extension, perfect for lifting water toys up to 500 kg in weight. Handling is hydraulic for the rotation (180 ° – 270 °), elevation, and extension of the telescopic boom to reach a length of 400 cm. The structure is in powder-coated stainless steel with molded fiberglass cowling for base and arm. 640 cm long cable. Supplied with manual pump in case of emergency and acoustic signaling system during the handling phases.

View Specifications here.

Lifting capacity up to 500 kg

Lifting capacity up to 500 kg

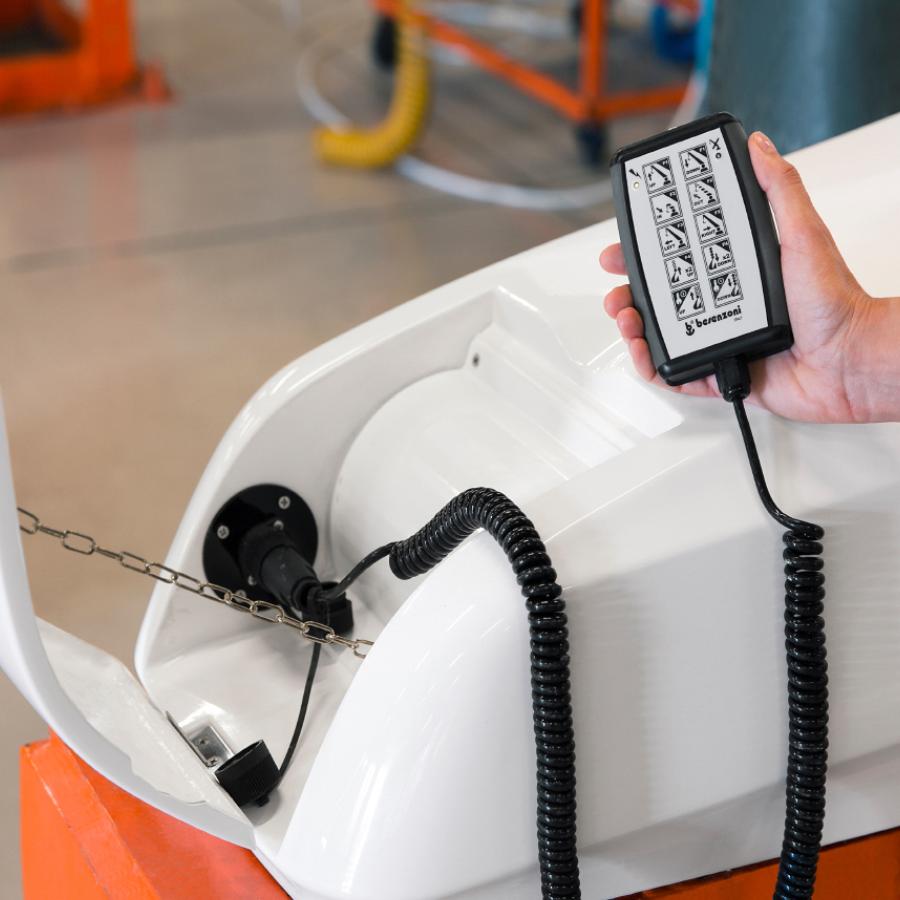

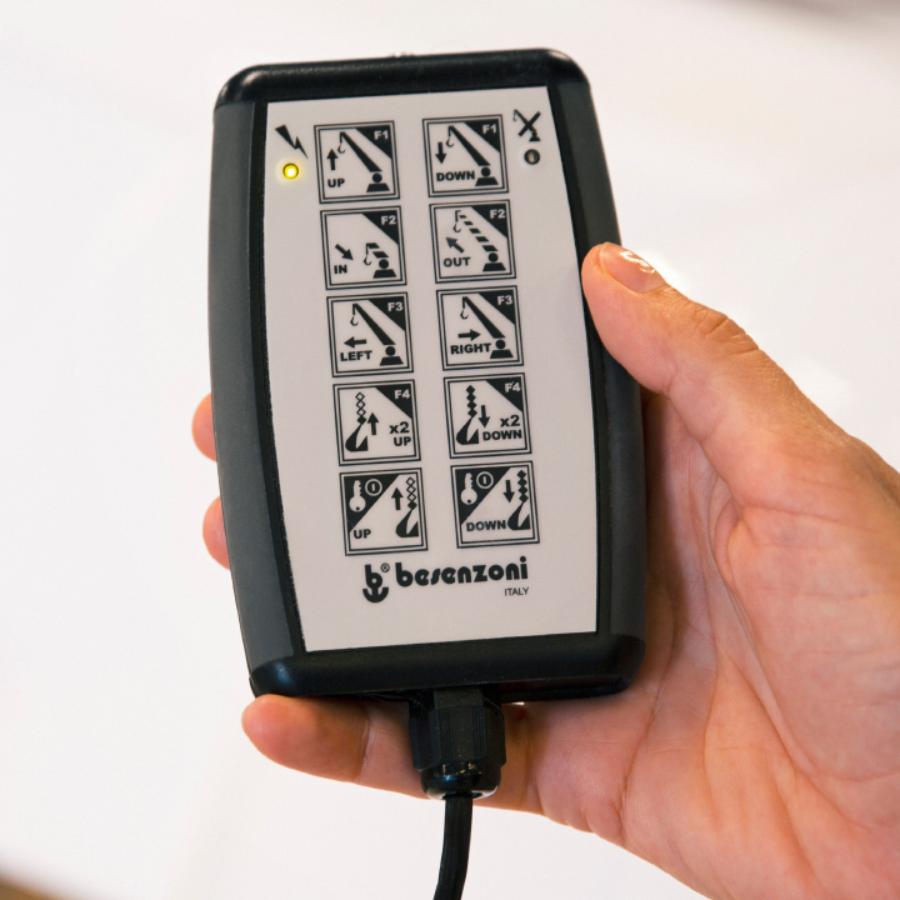

Hydraulic slewing crane with telescopic boom• Lifting Capacity from 480 up to 500 kg• Powder coated stainless steel structure• Molded fiberglass cowling for base and arm• Hydraulic movement for rotation,boom extension, luffi ng and hoisting cable• Slewing 180° ÷ 270°• Counterweight with rubber inserts for cable tension• Manual retaining system for cable weight whilst cruising• Water resistant handheld wired control• Manual pump for emergency• Warning buzzer signals when crane is in motion.
