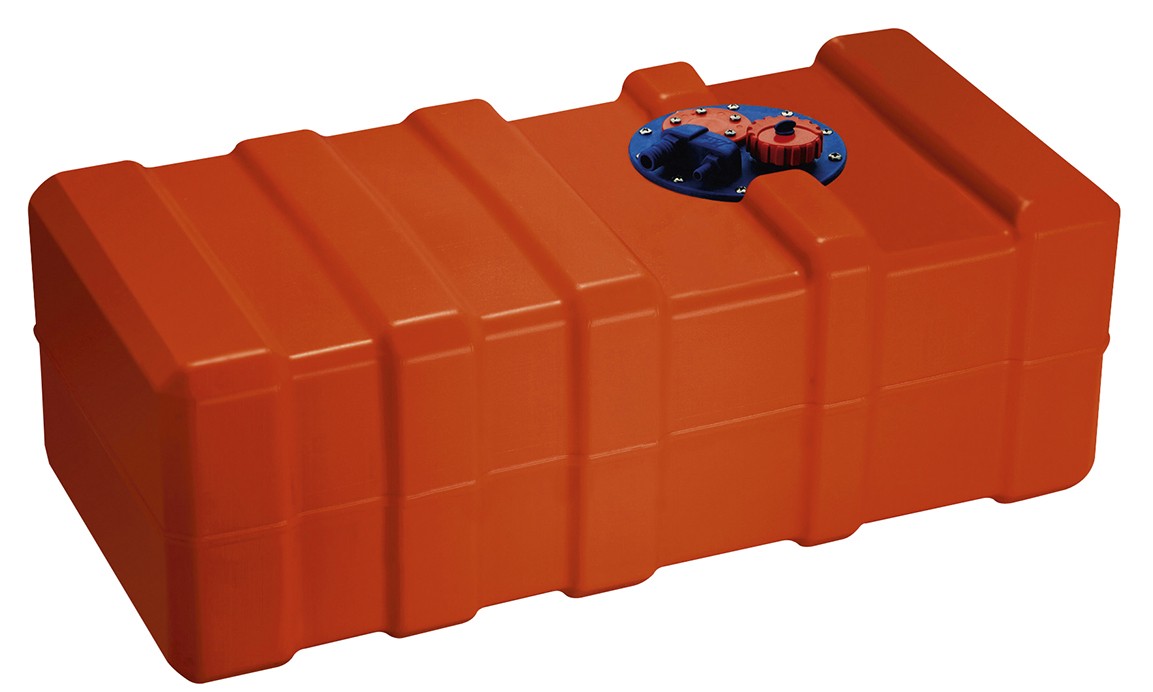

Fuel tanks

Tanks in high density polyethylene. Supplied with a polyamide multi-purpose plate.
Plate features:

A 1″ 1/2 fuel inlet (comes standard with a vent cap).
A pickup fitting for hose Ø 7-9 mm (1/4″ thread).
A vent outlet for hose Ø 17-19 mm (3/8″ thread).
A flange for an electric or mechanical sending unit (available as option).
An additional 1/4″ threaded hole for a diesel return or a second pickup fitting.

Meet 94/25/CE directive, as amended by directive 2003/44/CE.

SKU: 27268 Categories: ,
Plastimo
Models

Models

Capacity Ref. Dimensions (L x W x H)
33 L 27268 500 x 350 x 230 mm
43 L 27269 650 x 350 x 230 mm
53 L 27270 800 x 350 x 230 mm
70 L 61990 800 x 400 x 280 mm
84 L 61991 950 x 400 x 280 mm
96 L 61992 1100 x 400 x 280 mm
42 L 61987 500 x 350 x 300 mm
55 L 61988 650 x 350 x 300 mm
70 L 61989 800 x 350 x 300 mm
102 L 61993 800 x 400 x 400 mm
120 L 61994 950 x 400 x 400 mm
140 L 475343 1100 x 400 x 400 mm
Features

Features

Capacity Ref. Dimensions(L x W x H) mm  Options
Electric sending unit Mechanical gauge
10-180 Ohm  240-30 Ohm
33 L  27268  500 x 350 x 230 61999 62004 27272
43 L  27269  650 x 350 x 230
53 L  27270  800 x 350 x 230
70 L  61990  800 x 400 x 280 62001 62006 27271
84 L  61991  950 x 400 x 280
96 L  61992  1100 x 400 x 280
42 L  61987  500 x 350 x 300 62047 62048 62011
55 L  61988  650 x 350 x 300
70 L  61989  800 x 350 x 300
102 L  61993  800 x 400 x 400 62003 62008 428721
120 L  61994  950 x 400 x 400
140 L  475343  1100 x 400 x 4000
