XP800 – Vertical Windlass

Main features:

  • Features a vertical planetary gearmotor for easy installation on deck, even by a single person
  • The simple footprint utilises standardised hole saw drills for faster installation on board
  • Easy installation, even by one person
  • Marine stainless steel construction
  • Manual chain release
  • Pre-installed chain counter sensor
  • With electric break for anchor lock when not in use
  • Maximum pulling power with the absolute lowest amperage consumption in the market

Standard Equipment:

  • Handle
  • Pressure finger
  • Control box
  • Thermal circuit breaker
  • Lofrans’ rocker switch.

It provides a maximum pull of 320 kg making it an ideal anchoring system solution for small vessels up to 11 meters / 36 feet.

The amperage consumption at working load is 35 A, requiring an 8 AWG cable.

SKU: 636790 Categories: , ,

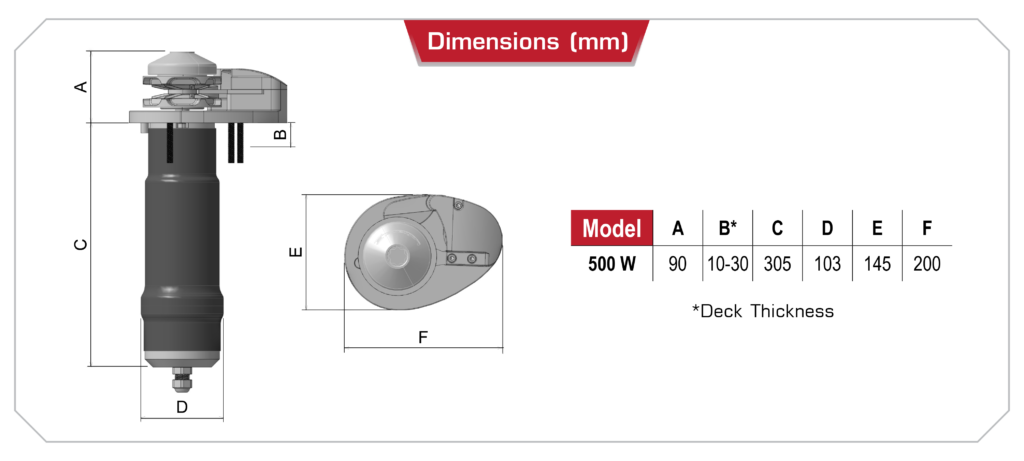

Dimensions

Dimensions

Specifications

Specifications

Code Description Line Speed at W.L Max Line Speed Circuit Breaker Control Box Power Supply Maximum Pull Working load (kg) Amps at Working Load (A) Gypsy For Chain Gypsy For Rope
WINDLASS V. XP800 ΙΝΟΧ 500W/12V 6-3/16” BBB 17m/min 21m/min 25A Included in the package 12V 320kg 95kg 35A 6mm 10-12mm 3-strand
WINDLASS V. XP800 ΙΝΟΧ 500W/12V 7-1/4″ HT 17m/min 21m/min 25A Included in the package 12V 320kg 95kg 35A 7mm 10-12mm 3-strand
WINDLASS V. XP800 ΙΝΟΧ 500W/12V 8-5/16 BBB-5/16 HT 17m/min 21m/min 25A Included in the package 12V 320kg 95kg 35A 8mm 12-14mm 3-strand
