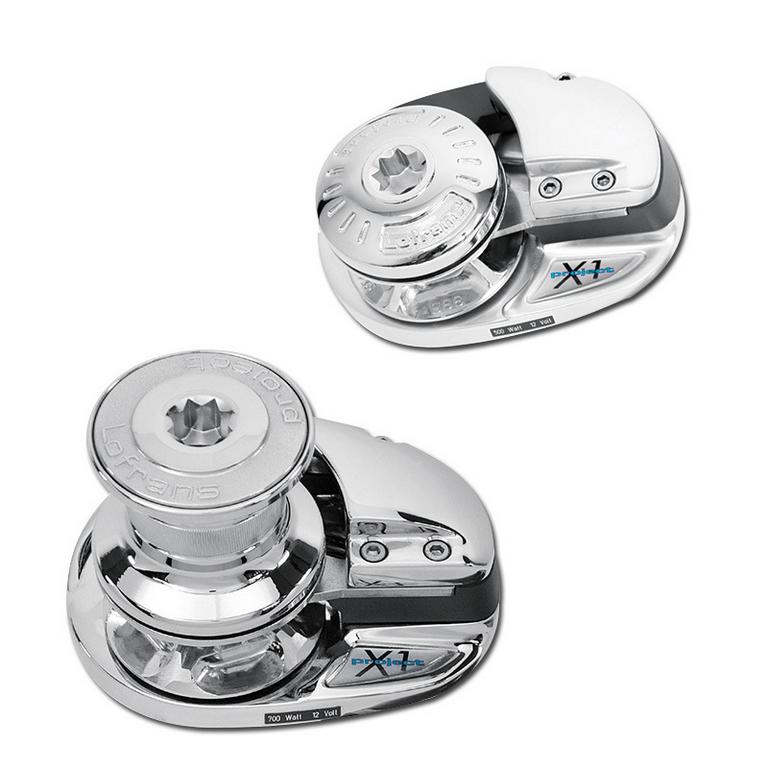

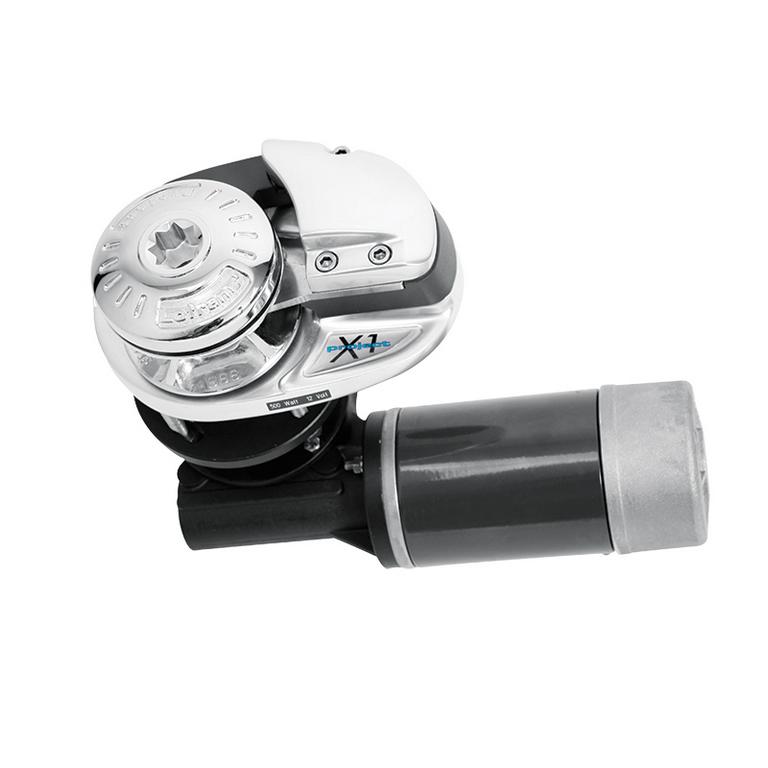

X1

Main Features

  • Luxury chrome bronze base and drum
  • With drum or Low profile
  • Indepent Gypsy and drum operation
  • Rope and chain combination Gypsy
  • Manual chain release
  • Rope chain management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP67 rated heavy duty electric motor
  • Anodised marine aluminium gearbox

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
Categories: , ,
Lofrans
Model Dimension Diagram

Model Dimension Diagram

Model A B C D E* F G H I J L
500W 130 10-30 111 Ø60 84 183 56 236 127 105 132
700W 130 10-30 111 Ø60 84 183 56 236 127 105 132
1000W 130 10-30 150 Ø60 84 183 62 256 127 134 165
*Low Profile height dimensions.
Specifications

Specifications

The “X” vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure (this feature is not available in the X1 model).
