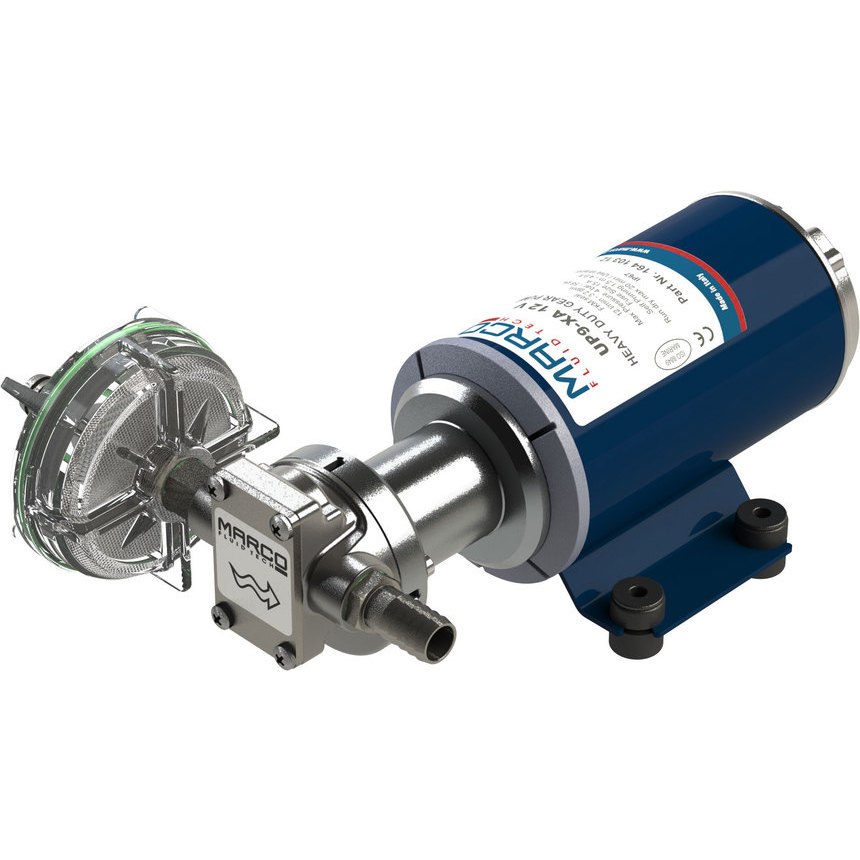

UP9-XA heavy duty gear pump with flange 12 l/min – s.s. AISI 316

Self-priming electric pumps for transferring of liquids up to 5 bar pressure. Pump body and connections in stainless steel. Main application: High pressure spraying of aggressive liquids.

View installation 16410312 – UP9-XA 12V sheet here.

View installation 16410313 – UP9-XA 24V sheet here.

View installation 16410612 – UP9-XA 12V sheet here.

View installation 16410613 – UP9-XA 24V sheet here.

SKU: 16410312 Categories: , ,
Technical details

Technical details

Part n. Product Name Retail price (€ ea.) Tensione (V) Assorbimento (A) Fusibile (A) Portata (l/min) Adescamento (m) Pressione (bar) O-Ring Tenuta Hz Bocche (BSPP) Tubo (mm) Protezione IP Potenza Motore (W) Peso (kg)
16410312 UP9-XA Login 12 5 15 12 1,5 5 FKM FKM DC 3/8″ 13 67 180 2,7
16410313 UP9-XA Login 24 3 7,5 12 1,5 5 FKM FKM DC 3/8″ 13 67 180 2,7
16410612 UP9-XA Login 12 5 15 12 1,5 5 EPDM EPDM DC 3/8″ 13 67 180 2,7
16410613 UP9-XA Login 24 3 7,5 12 1,5 5 EPDM EPDM DC 3/8″ 13 67 180 2,7

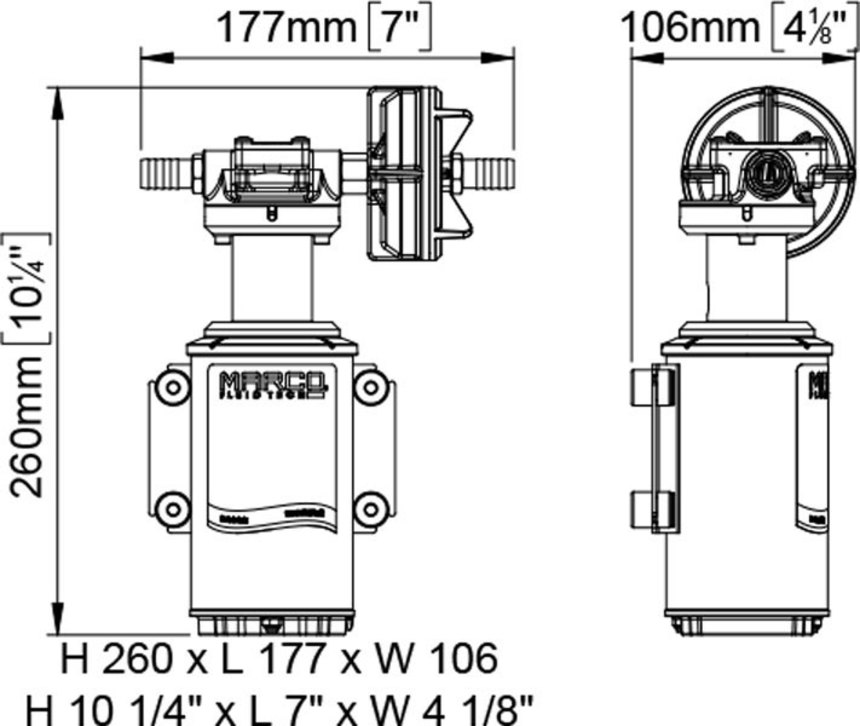

Drawing

Drawing
