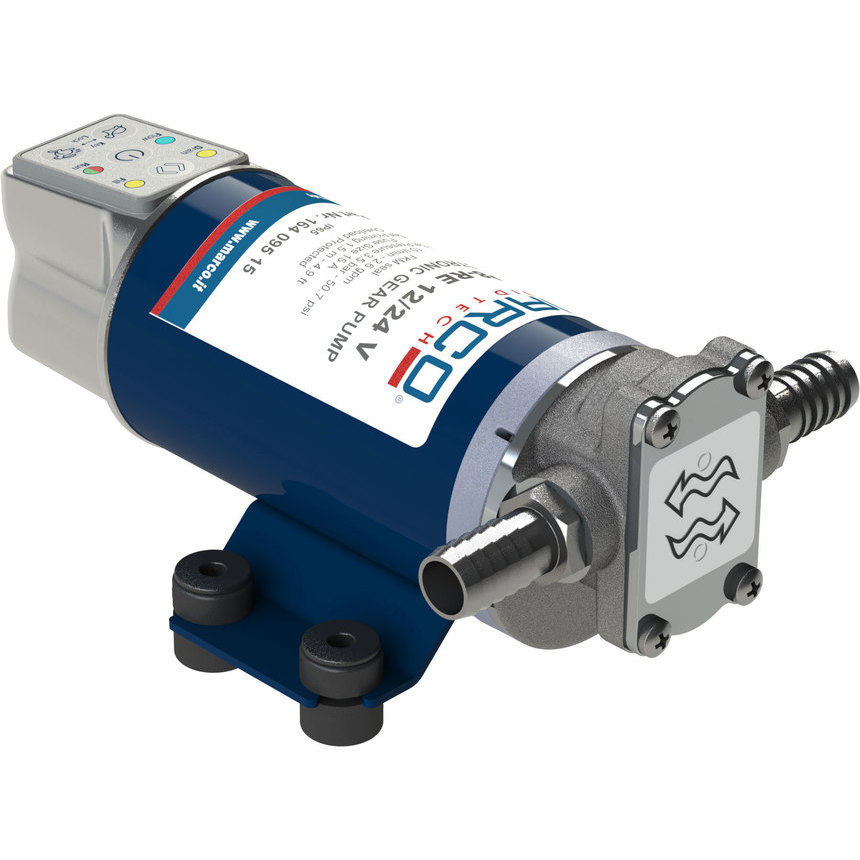

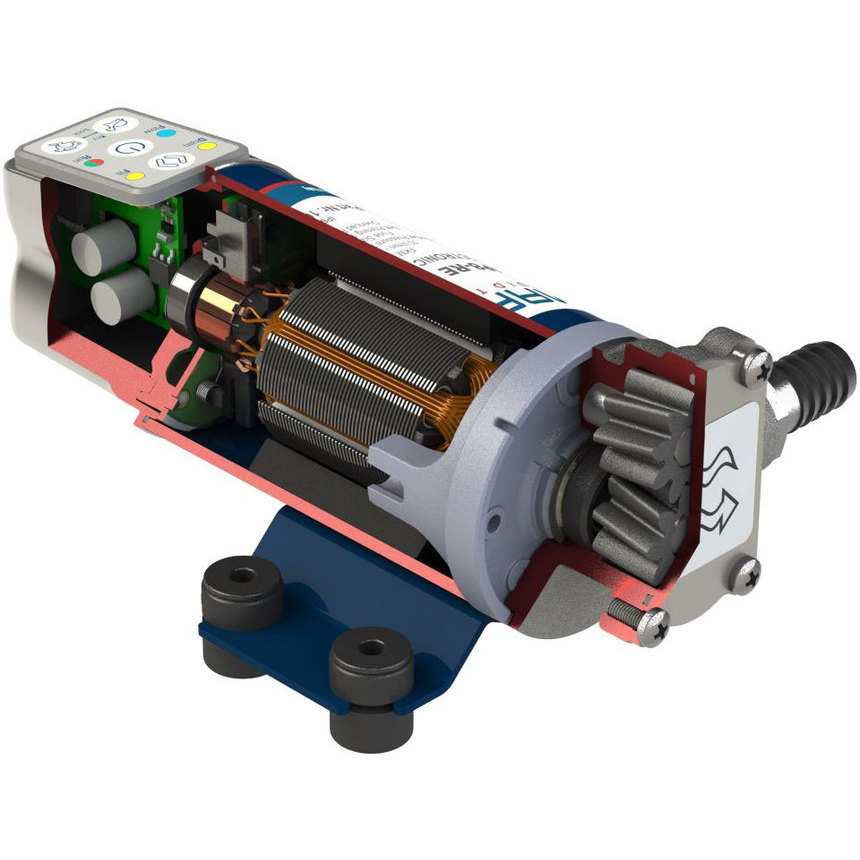

Heavy duty Electronic Gear pump 10 l/min and 3,5 bar. Integrated Smart Keypad to reverse the flow direction and to manually fine tune the flow rate; the flow rate is also automatically adjusted according to the viscosity of the fluid to avoid cavitation. Best for oil and diesel transferring. Compact and Easy to operate and carry.
View installation sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) | Cavi (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16409515 | UP8-RE | Login | 12/24 | 11 / 5,5 | 15 | 10 | 1,5 | 3,5 | NBR | HNBR | DC | 3/8″ | 13 | 67 | 150 | 2,2 | Yes |
