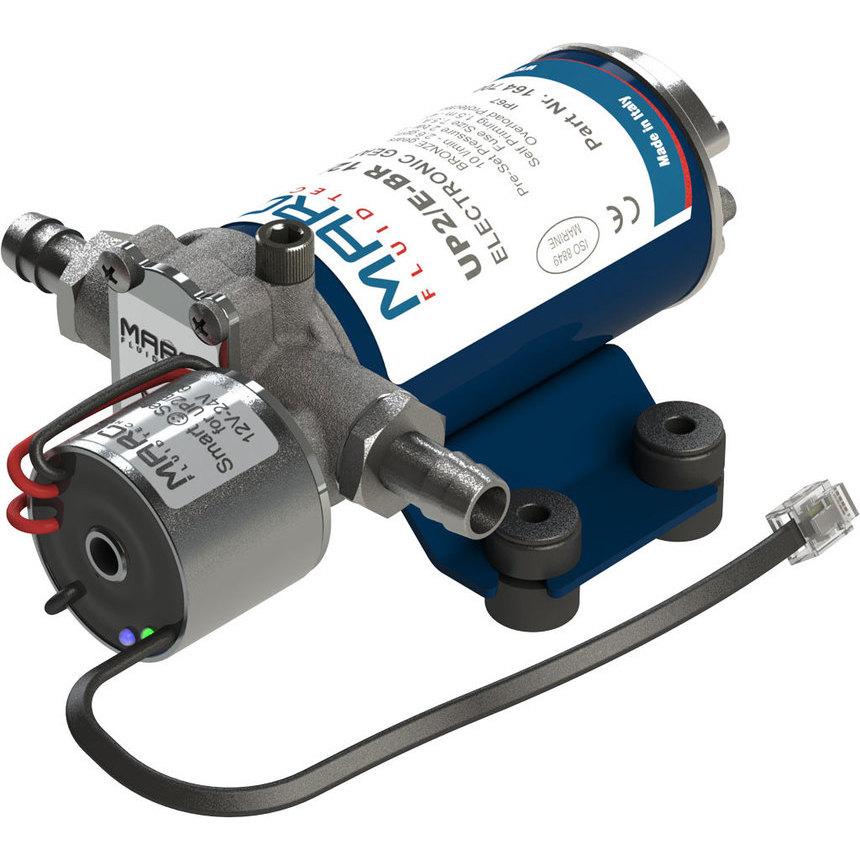

Self-priming automatic electric pump, 12/24V, with constant pressure electronic control for the transfer of diesel and oil. Bronze gears, NBR check valve, body and connections in nickeled brass, stainless steel shaft. FKM seal and NBR O-rings. Helical bronze gears guarantee constant pressure, heavy duty cycles, less noise and can operate in the absence of liquid. The pumps are supplied with a “High-Speed” setting for Diesel transfer. The integrated SCS control panel allows the switch to the “Low-Speed” mode for the transfer of oil and viscous liquids.
View installation sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) | Cavi (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16470015 | UP2/E-BR | Login | 12/24 | 6 / 3 | 15 | 12 | 1,5 | 2 | NBR | FKM | DC | 3/8″ | 12 | 67 | 90 | 1,3 | Yes |
