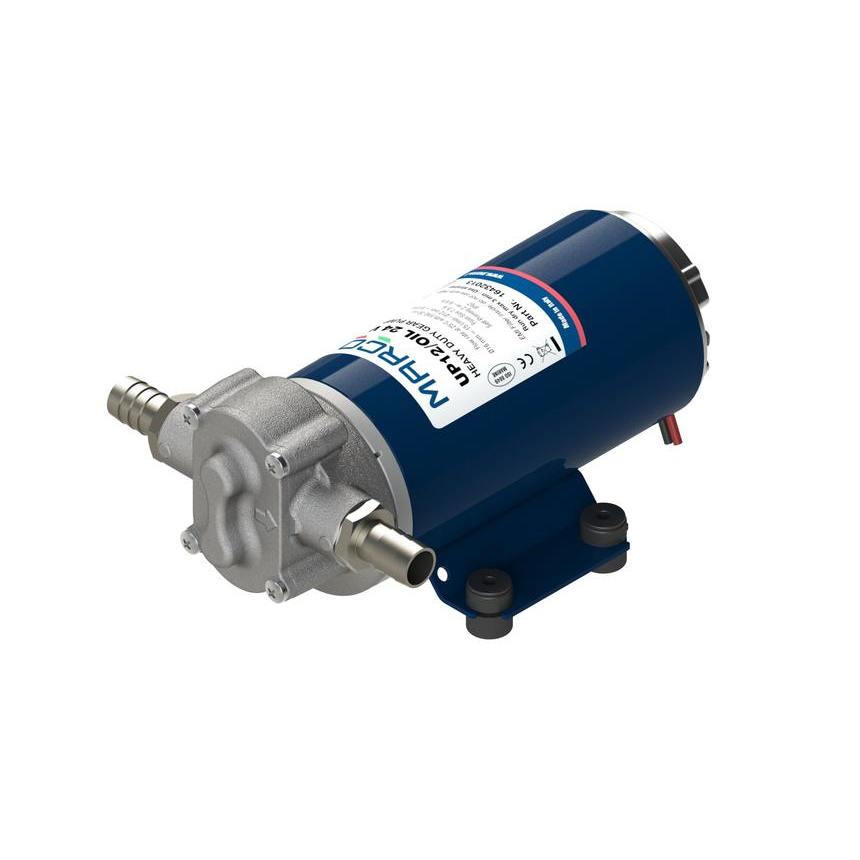

Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps and for engines lubricating operations.
View installation 16432012 – UP12/OIL 12V sheet here.
View installation 16432012-US – UP12/OIL 12V sheet here.
View installation 16432013 – UP12/OIL 24V sheet here.
View installation 16432013-US – UP12/OIL 24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Adescamento (m) | Portata (l/min) | Pressione (bar) | Tenuta | O-Ring | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16432012 | UP12/OIL | Login | 12 | 11 | 15 | 2 | 15 | 3 | FKM | NBR | DC | 1/2″ | 16 | 67 | 180 | 4,5 |
| 16432013 | UP12/OIL | Login | 24 | 6 | 7,5 | 2 | 15 | 3 | FKM | NBR | DC | 1/2″ | 16 | 67 | 180 | 4,5 |
