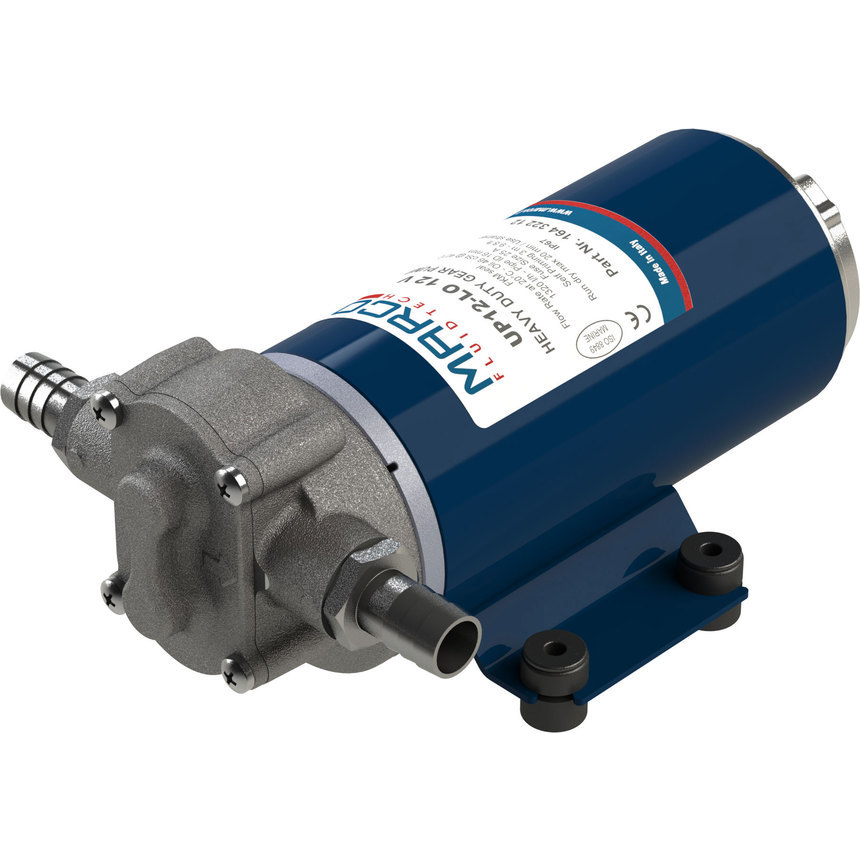

Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps and for engines lubricating operations.
View installation 16432212 – UP12-LO 12V sheet here.
View installation 16432212-US – UP12-LO 12V sheet here.
View installation 16432213 – UP12-LO 24V sheet here.
View installation 16432213-US – UP12-LO 24V sheet here.
| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Adescamento (m) | Portata (l/min) | Portata ø 16 (l/min) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16432212 | UP12-LO | Login | 12 | 19 | 25 | 3 | 26 | 22 | 3 | NBR | FKM | DC | 1/2″ | 16 | 67 | 360 | 4,5 |
| 16432213 | UP12-LO | Login | 24 | 11 | 15 | 3 | 26 | 22 | 3 | NBR | FKM | DC | 1/2″ | 16 | 67 | 360 | 4,5 |
