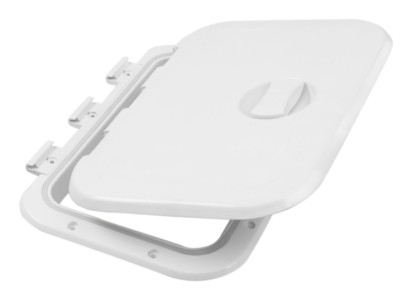

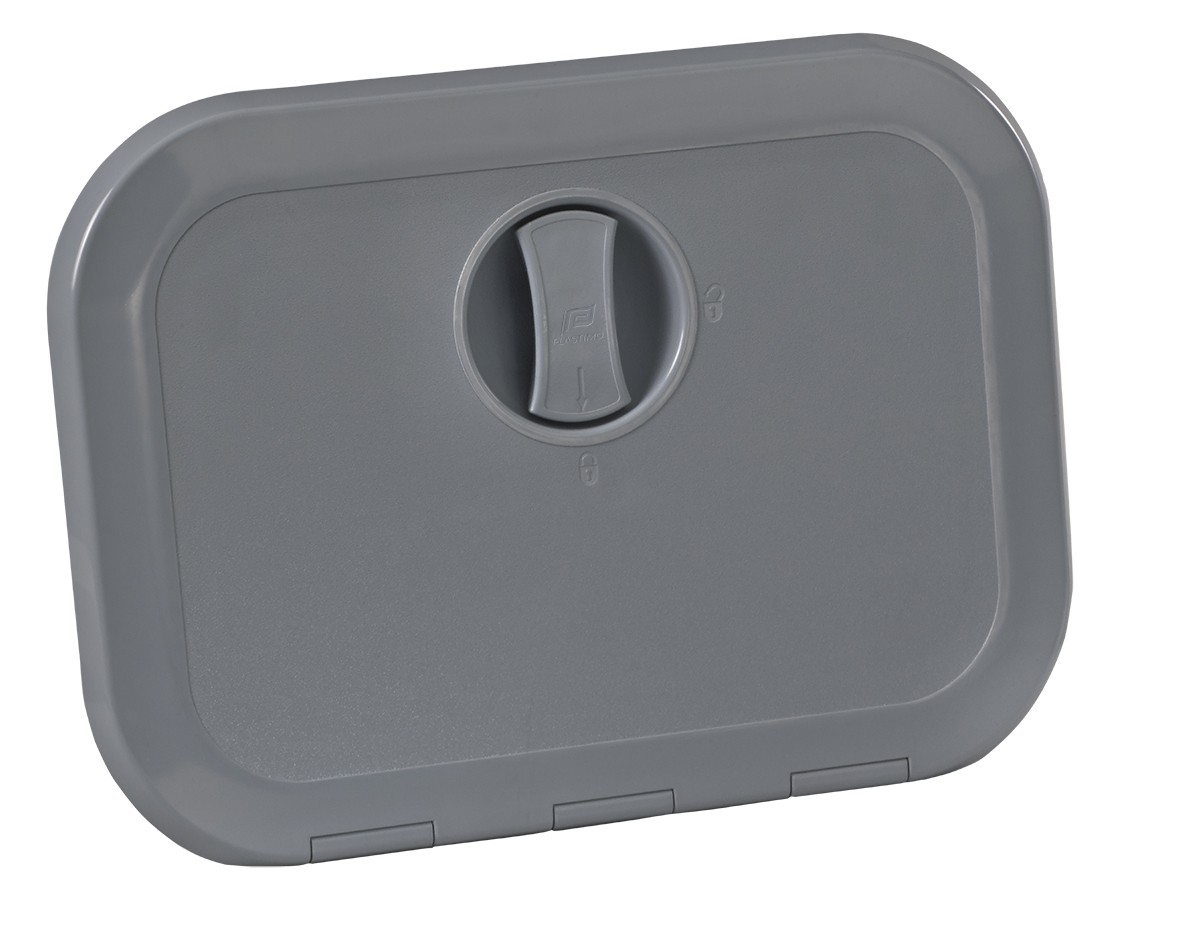

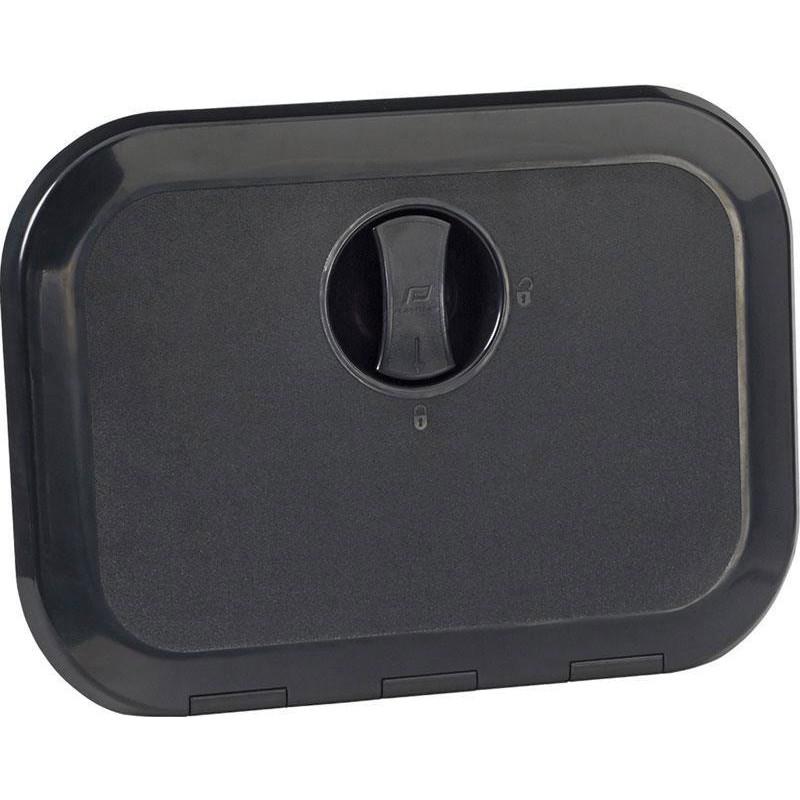

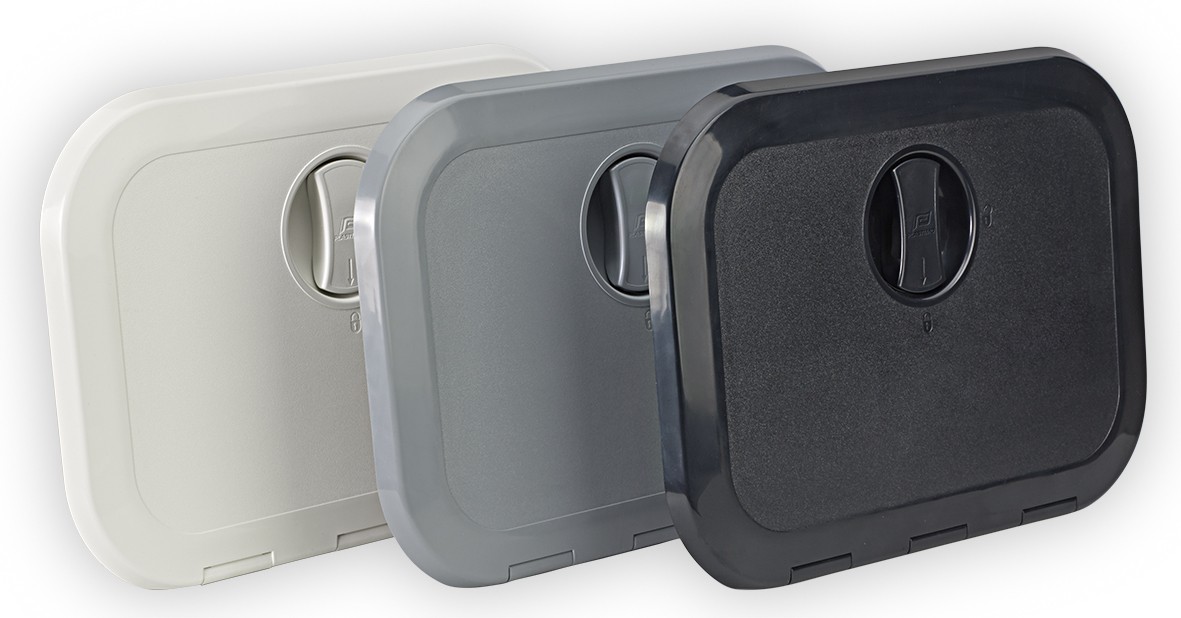

Storage hatches

Developed by the Plastimo R & D, a range of hatches which combines easy installation for the boatbuilder and optimised space for the yachtsman.
Construction in high grade ASA for durability and resistance :

  • Impervious to UV
  • Excellent mechanical resistance, enhanced by the honeycomb structure inside the hatch
  • Walkable : resists 130 kg load with no distortion at all
  • Opening through 180°
  • Deck or wall mount
  • EPDM rubber gasket for perfect watertightness
  • Supplied with a set of 2 hinges allowing different installation alternatives : classic articulated hinge opening through 180°, or specific hinge making the hatch removable.
Models

Models

Model Ref. A x B
Storage hatch, WHITE 62114 374 x 374 mm
Storage hatch, BLACK 64804 374 x 374 mm
Storage hatch, GREY 64788 374 x 374 mm
Storage hatch, WHITE 62106 270 x 373 mm
Storage hatch, BLACK 64808 270 x 374 mm
Storage hatch, GREY 64792 270 x 374 mm
Storage hatch, WHITE 62110 357 x 606 mm
Storage hatch, BLACK 64812 357 x 606 mm
Storage hatch, GREY 64796 357 x 606 mm
Storage hatch, WHITE 62118 459 x 514 mm
Storage hatch, BLACK 64816 459 x 514 mm
Storage hatch, GREY 64800 459 x 514 mm
Features

Features

Réf. Dimensions en mm
Blanc Noir Gris A x B C D E F G H I
 62114 64804 64788  374 x 374 290 290 277 277 260 310 310
62106 64808 64792  270 x 373 187 290 270 170 190 207 307
62110 64812 64796  357 x 606 274 523 495 245 300 290 540
62118 64816 64800  459 x 514 375 430 385 355 330 395 450
