SERIES E – SYSTEM 50-100ft

For boats and vessels up to 100 ft
Planing and semi-planing boats and vessels
Tunnel shaped interceptors

AMAZING JUST GOT BETTER

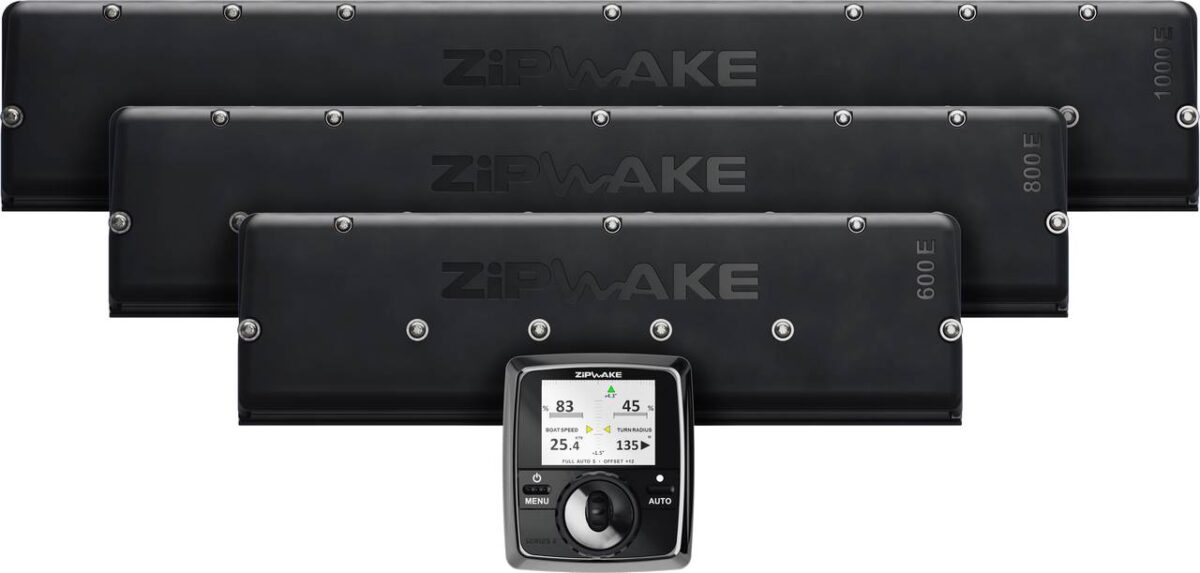

An even faster response time. Even better lift force. A bigger, brighter display. And enhanced performance and comfort. The Dynamic Trim Control System Series E takes fully automatic trim control to another dimension. The system brings together a family of durable, fast-acting interceptors and 3D controls engineered for bigger boats up to 30 m (100 ft) for unmatched command of running trim, heel and heading. The Series E is compatible with Series S interceptors.

WHAT’S NEW IN THE SERIES E

Faster action: 40 mm/s blade rate
More efficient lift: 60 mm blade stroke
Improved control: New 2.8” display with better visibility
More flexibility: New Distribution Expansion Unit
Tunnel shaped interceptors

DOWNLOAD SPECIFICATION DOWNLOAD BROCHURE

MOTION CONTROL FEATURES
SPECIFICATIONS
ORDERING DATA

MOTION CONTROL FEATURES

Mode	Motion	Feature description	Standard	Future
Automatic	Roll	Active roll control	YES
		Advanced turn recognition	YES
		Coordinated turns	YES
		Easy sensitivity control	YES
	Pitch	Curve-based pitch control	YES
		Pitch-offset control with quick save	YES
		Easy manipulation of pitch control curve	YES
		Basic pitch control curve from boat dimensions	YES
	Yaw	Auxilliary steering, controllable by other onboard system		YES
	Yaw	Manual	Roll	List control	YES
Speed-progressive control wheel	YES		Roll
Pitch	Trim control		YES
Pitch	Speed-progressive control wheel		YES
Yaw	Steering control (calm sea or emergency steering)		YES
Yaw	Speed-progressive control wheel YES

SPECIFICATIONS

Model	KB600-E	KB800-E	KB1000-E	KB600-E CHINE
Width mm (in)	752 (29.6)	930 (36.6)	1130 (44.5)	752 (29.6)
Depth	192 (7.6)	192 (7.6)	192 (7.6)	192 (7.6)
Height	452 (17.8)	458 (18)	458 (18)	452 (17.8)
Weight kg (lbs)	21.7 (47.8)	26.5 (58.4)	32.5 (71.7)	22 (48.5)

ORDERING DATA

Model	KB600-E	KB800-E	KB1000-E	KB600-E CHINE
Part No.	2012011	2012012	2012013	2012014
