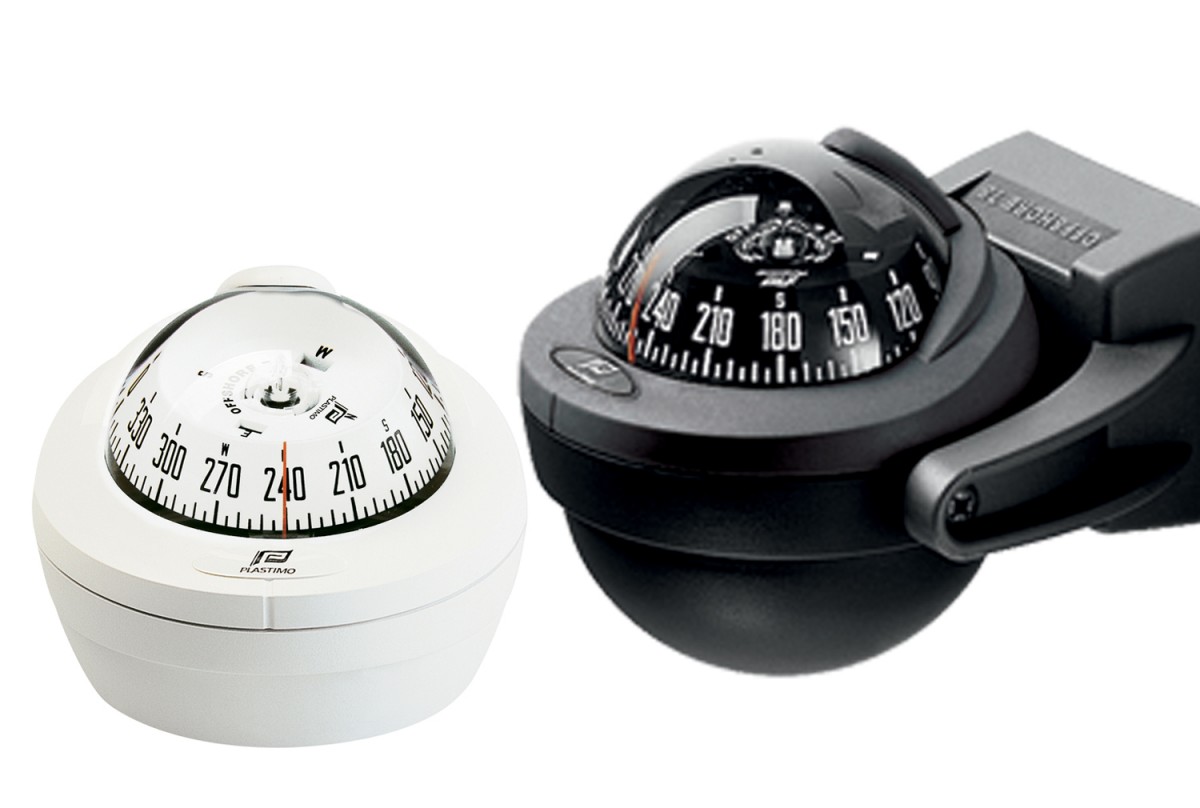

Offshore 75 compass, bracket / mini-binnacle

Installation

  • Mini-binnacle : mounts on a horizontal surface thanks to the unique clip-plate which allows the compass to be removed.
  • Bracket : the broad and sturdy bracket base absorbs the vibrations. Mounting can be done on any surface, whatever the angle, provided that the compass + card unit remains horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate.
SKU: 63863 Categories: ,
Plastimo
Models

Models

Mounting Lighting Colour Ref.

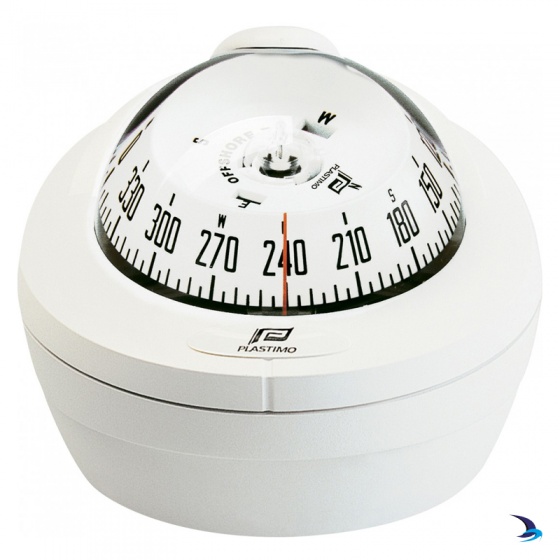

Mini-binnacle, horizontal surface No (Basic)* WHITE binnacle & flange, black card 63863
Mini-binnacle, horizontal surface Yes WHITE (card, flange & binnacle) 63862

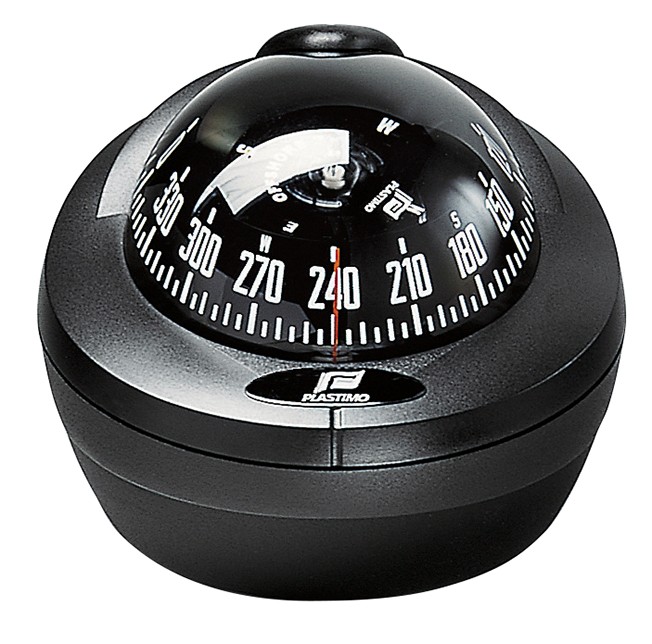

Mini-binnacle, horizontal surface Yes BLACK (card, flange & binnacle) 63861

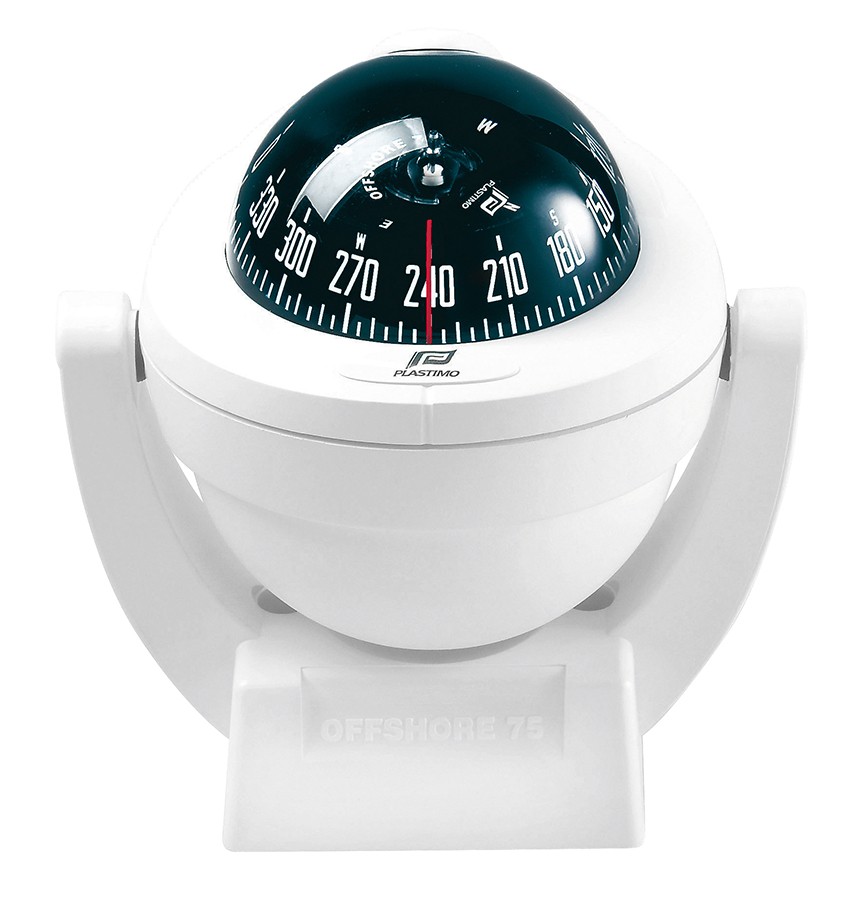

Bracket-mount, horiz./vertical surface No (Basic)* WHITE binnacle & bracket, black card 63864
Bracket-mount, horiz./vertical surface Yes WHITE (card, flange & bracket) 63866

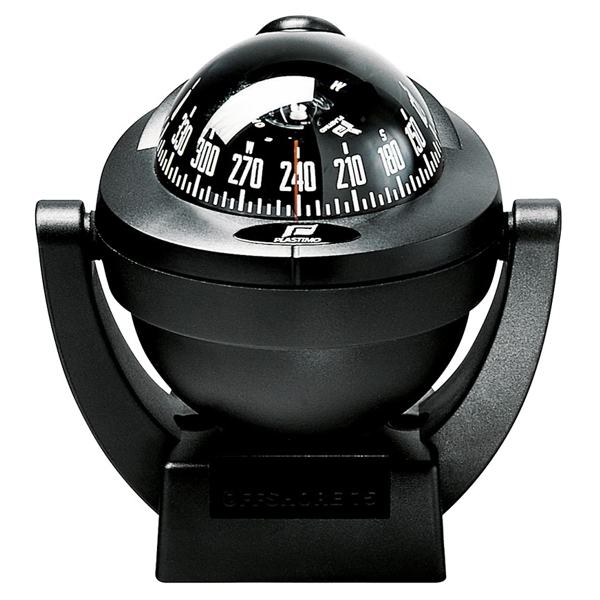

Bracket-mount, horiz./vertical surface Yes BLACK (card, flange & bracket) 63865
* BASIC version also available : ref. 63863 and 63864. Same features but no light.World balance, one single compass around the world.Double-dip compass designed to operate accurately in both Northern and Southern hemispheres.
Features

Features

Card design guarantees accurate readings and safe navigation under all weather or daylight conditions.

  • Highly stable conical card, 70 mm apparent diameter.
  • Every card is balanced individually in our workshops.
  • Front reading : graduation every 5° and compact figures allow for easy reading.

Lighting : Bulb is integrated in the bowl, thus speading the illumination evenly and preventing eye srain and fatigue at night. (Basic no-light version also available)Durable materials : All parts fully UV-impervious. Scratch resistant dome.

Boat size Powerboats of 5 to 8 metres (17 to 26 ft).
Compass card Conical card graduated every 5°, apparent Ø 70 mm.Heading numerals every 30°
Mounting
  • Mini-binnacle : on a horizontal surface thanks to a clip-plate (included) : compass is removable.
  • With bracket : mounted on a horizontal or inclined surface. Compass is removable thanks to clip-plate.
Resistance to vibrations and hull  pounding Magnetic cell equipped with the unique “Vibration Absorber” system.
Lubber line 1 lubber line, fluorescent orange for instant recognition.
Compensation Optional
Lighting Included as original feature : 12-24 V LED (except Basic no-light models)
Approval/homologation ISO 613 compliant
Resistance to vibrations tested by LCIE* no. 30 559 010). :”Vibration Absorber” exclusive system : minimal contact between the pivot and the sapphire cup.*LCIE : French official testing laboratory
Watertight construction :

  • One-piece moulded flange and bowl.
  • Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by the differences in temperature and atmospheric pressure, thus preventing the formation of bubbles.
  • Lighting integrated in the bowl.
